View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

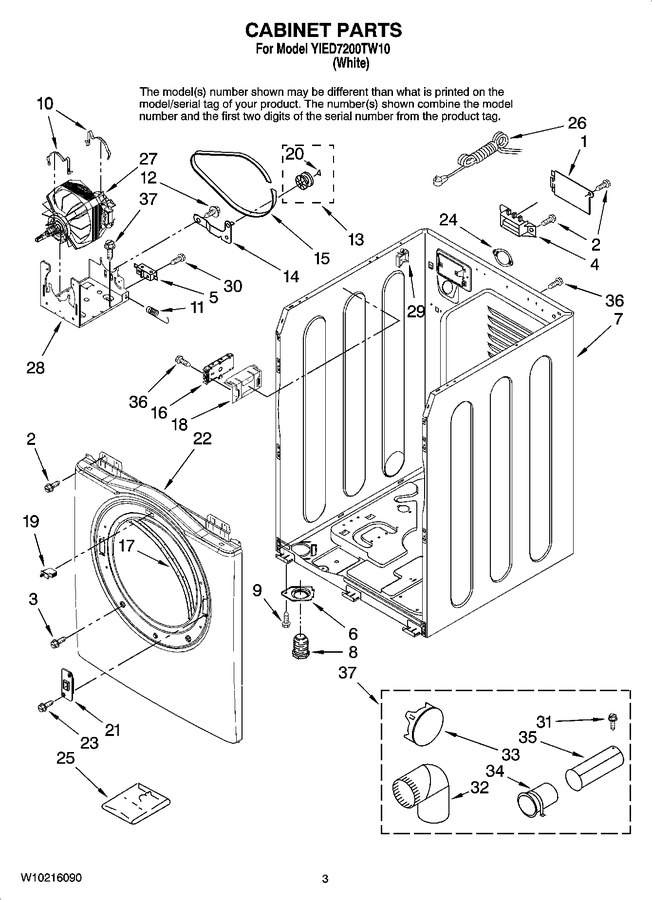

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DC97-08855A | Cover, Terminal Block (Replaces: 35001157) |
|
$ 40.98 | |||||
| 2 | 6006-00174 | Screw-tapping |
|
- | |||||
| 3 | 6006-001006 | Screw-tapping |
|
- | |||||
| 4 | 279320 | Block, Terminal (Replaces: 34001481) |
|
Immediately | $ 61.43 | ||||
| 5 | 35001082 | Switch, Broken Belt |
|
$ 10.45 | |||||
| 6 | 35001156 | Bracket, Dryer Foot |
|
- | |||||
| 7 | DC97-07516A | Cabinet (Replaces: 35001169) |
|
$ 183.38 | |||||
| 8 | 35001158 | Foot, Dryer |
|
$ 9.64 | |||||
| 9 | 6002-000239 | Screw-tapping (10) |
|
Immediately | $ 1.66 | ||||
| 10 | 35001081 | Clamp, Motor (2) |
|
$ 10.14 | |||||
| 11 | 35001278 | Spring, Idler |
|
$ 26.16 | |||||
| 12 | 6009-001342 | Retainer, Idler |
|
$ 2.50 | |||||
| 13 | 35001086 | Pulley Assembly |
|
$ 58.24 | |||||
| 14 | 35001276 | Bracket, Idler |
|
- | |||||
| 15 | WPW10205415 | Belt-drive (Replaces: 35001137) |
|
Immediately | $ 92.66 | ||||
| 16 | 35001153 | Board, Control |
|
$ 285.15 | |||||
| 17 | W10177398 | Seal-front Panel |
|
$ 33.69 | |||||
| 18 | DC61-01229A | Bracket, Control Board (Replaces: 35001168) |
|
$ 33.30 | |||||
| 19 | 35001125 | Door-switch |
|
$ 29.27 | |||||
| 20 | 35001084 | Tri-ring |
|
$ 5.84 | |||||
| 21 | 35001112 | Catch, Door Assembly |
|
$ 39.83 | |||||
| 22 | W10177396 | Panel, Front |
|
- | |||||
| 23 | 6002-00213 | Screw-tapping |
|
- | |||||
| 24 | DC61-01428A | Strain-relief Power Cord (Replaces: 35001167) |
|
$ 1.66 | |||||
| 25 | 35001254 | Kit Stack Assembly |
|
- | |||||
| 26 | W10222769 | Cord, Power |
|
$ 72.98 | |||||
| 27 | WP35001080 | Assembly, Motor 60 Hz. (Replaces: 35001080) |
|
Immediately | $ 297.59 | ||||
| 28 | 35001106 | Bracket-motor |
|
- | |||||
| 29 | 35001171 | Clip, Harness |
|
- | |||||
| 30 | 35001107 | Screw-tapping |
|
- | |||||
| 31 | WPW10346892 | Screw-tapping (Replaces: 213121) |
|
Immediately | $ 6.47 | ||||
| 32 | Y059131 | 4`` - 90 Elbow |
|
- | |||||
| 33 | 35001216 | Plug-multivent |
|
- | |||||
| 34 | 35001205 | Duct, Exhaust (a) |
|
- | |||||
| 35 | 35001204 | Duct, Exhaust (b) |
|
- | |||||
| 37 | 12002641 | Dryer Exhaust Kit (for Side & Bottom Venting) (white) |
|
- |
