01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts

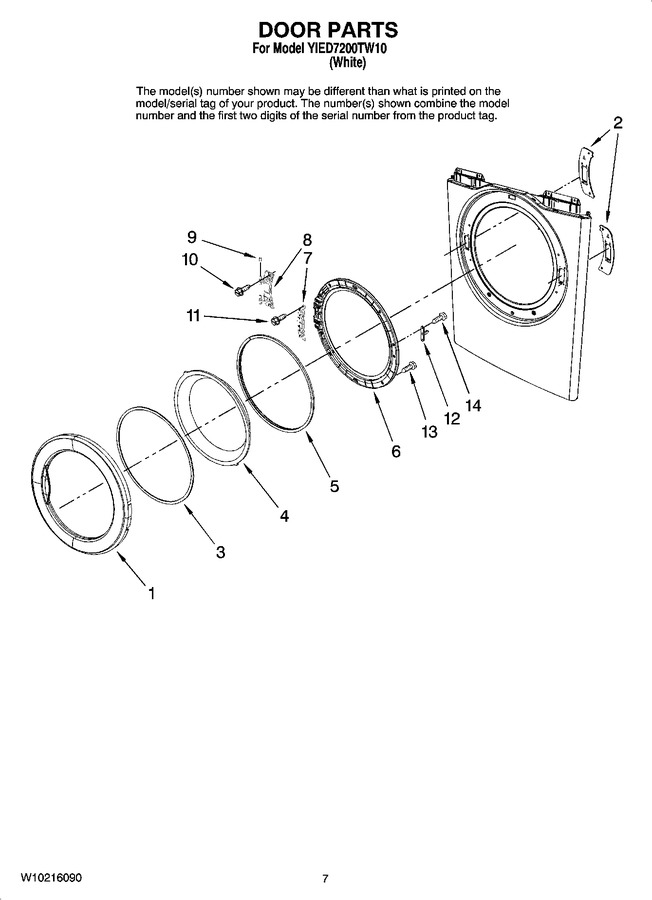

04 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	35001235		Door-outer Ring				$ 135.39
2	35001129		Bracket-hinge		Appelez-nous	-
3	35001235		Door-safety				$ 135.39
4	555555		Window   (Replaces: 35001182)				$ 151.94
5	35001250		Seal-door				$ 95.43
6	W10177441		Holder-glass		Appelez-nous	-
7	35001120		Support-hinge				$ 27.55
8	W10177442		Hinge, Door		Appelez-nous	-
9	35001127		Bearing-hinge				$ 6.14
10	6001-001773		Screw-machine			Immediately	$ 2.39
11	6002-000213		Screw-tapping			Immediately	$ 0.93
12	35001111		Catch-door				$ 16.29
13	6002-000525		Screw-tapping				$ 0.85
14	6002-000475		Screw-tapping				$ 0.85
NI	12002641		Kit, Dryer Repair		Appelez-nous	-
NI	350930		Paint, Pressurized Spray (12 Oz.) ( White)			Immediately	$ 34.39
NI	350938		Paint, Pressurized Spray (12 Oz.) (primer, Gray)		Appelez-nous	-
NI	35001151		Assy-flat Wire Harness				$ 62.63
NI	35001152		Assy-m-wire Harness (heater)		Appelez-nous	-
NI	35001164		Assy, Wire Harness (touch Sensor)				$ 24.91
NI	12002643		Hold Down Kit		Appelez-nous	-
NI	72017		Paint, Touch-up (1/2oz.) White			Immediately	$ 11.07
