SELECT A DIAGRAM

01 - Console

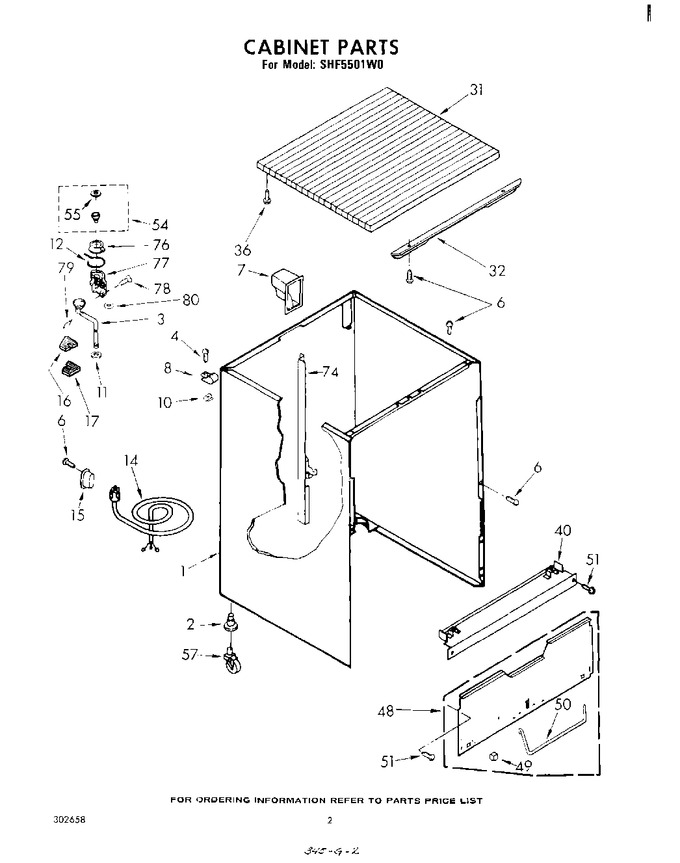

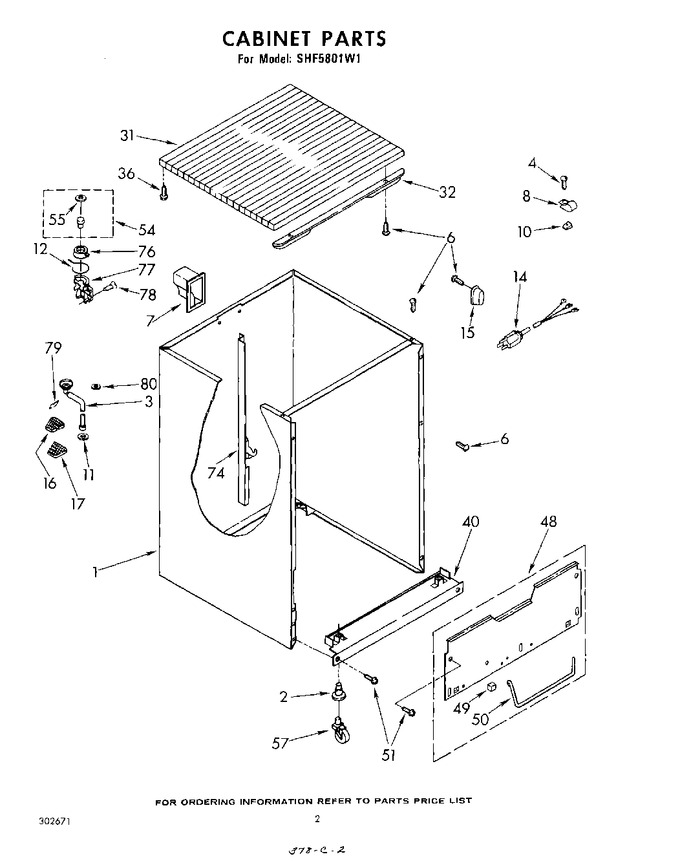

02 - Cabinet


03 - Door


04 - Tub , Lit/optional


05 - Dishrack


06 - Pump And Motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	301743		Shell Assembly (almond)		Appelez-nous	-
1	719614		Shell Assembly (white)		Appelez-nous	-
1	301737		Shell Assembly (coffee)		Appelez-nous	-
1	301738		Shell Assembly (new Avocado)		Appelez-nous	-
1	301736		Shell Assembly (golden Harvest)		Appelez-nous	-
2	300450		Socket, Caster (alternate)		Appelez-nous	-
2	717588		Socket, Caster (alternate)		Appelez-nous	-
3	718056		Coupler Assembly		Appelez-nous	-
4	WP489128		Screw, 8-32 X 3/8   (Replaces: 717232)				$ 9.79
6	WP488787		Screw, 8-18 X 1/2   (Replaces: 9418000)				$ 9.52
7	718030		Housing, Hose		Appelez-nous	-
8	596553		Clamp, Stain Relief		Appelez-nous	-
10	717337		Nut, J-type		Appelez-nous	-
11	WP16123		Washer   (Replaces: 16123)				$ 6.93
12	717958		Spring, Coupler		Appelez-nous	-
14	302325		Cord, Power		Appelez-nous	-
15	716234		Housing, Cord		Appelez-nous	-
16	300273		Flow Divider, Upper		Appelez-nous	-
17	300274		Flow Divider, Lower		Appelez-nous	-
31	302182		Panel, Top		Appelez-nous	-
32	302250		Trim, Front		Appelez-nous	-
36	343826		Screw		Appelez-nous	-
40	719513		Toeplate Assembly (includes Illus. 2)		Appelez-nous	-
48	719091		Plate, Cover				$ 1,740.16
49	719235		Bumper, Rubber		Appelez-nous	-
50	719094		Bar, Torsion (l.h.)				$ 1,874.92
50	719093		Bar, Torsion (r.h.)		Appelez-nous	-
51	WP90767		Screw, Tapping   (Replaces: 300890)			Immediately	$ 7.04
54	WPW10254672		Kit, Faucet Adapter   (Replaces: 300446)			Immediately	$ 49.54
55	300445		Washer		Appelez-nous	-
57	718534		Caster (use W/717588 Socket)		Appelez-nous	-
57	300424		Caster (use W/300450 Socket)		Appelez-nous	-
74	719622		Leg Assembly, R.h.		Appelez-nous	-
74	719621		Leg Assembly, L.h.		Appelez-nous	-
76	717939		Latch, Cap		Appelez-nous	-
77	717942		Cover, L.h.		Appelez-nous	-
77	717941		Cover, R.h.		Appelez-nous	-
78	718032		Screw, 8-18 X 3/4 (3)		Appelez-nous	-
79	718073		Coupler, Pull Ring		Appelez-nous	-
80	718738		``o`` Ring		Appelez-nous	-
