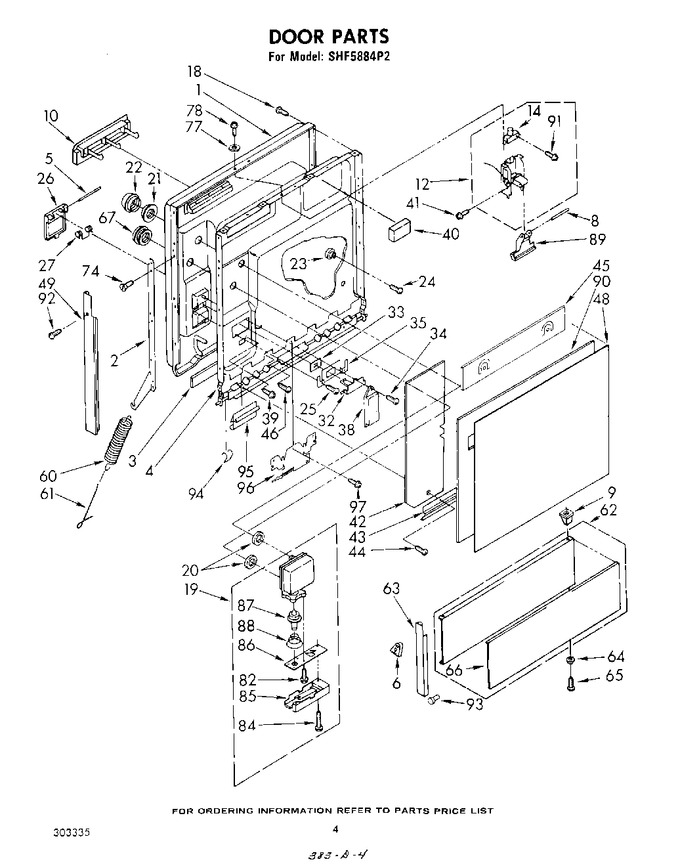

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	303269		Door, Inner (includes Illus. 4)		Appelez-nous	-
2	303197		Support, Door (r.h.)		Appelez-nous	-
2	303196		Support Door (l.h.)		Appelez-nous	-
3	717921		Gasket, Door		Appelez-nous	-
4	303202		Liner, Door		Appelez-nous	-
5	4387043		Pin, Lid Hinge   (Replaces: 300115)				$ 42.50
6	301596		Retainer (2)		Appelez-nous	-
8	300234		Pin, Pivot (2)		Appelez-nous	-
9	356592		Grommet		Appelez-nous	-
10	300246		Screen, Vent		Appelez-nous	-
12	300235		Latch Assembly		Appelez-nous	-
14	16600		Switch, Interlock (alternate)   (Replaces: 300232)				$ 6.18
14	303075		Switch, Interlock (alternate)		Appelez-nous	-
18	WP488729		Screw, 8 X 1/2 (2)   (Replaces: 301458)			Immediately	$ 7.01
19	719341		Dispenser, Wetting Agent		Appelez-nous	-
20	713080		Washer		Appelez-nous	-
21	718575		Nut		Appelez-nous	-
22	718577		Cap		Appelez-nous	-
23	300239		Button, Retainer (3)		Appelez-nous	-
24	300250		Screw, 8-18 X 3/8 (3)		Appelez-nous	-
25	718250		Screw, 8 X 1/2 Hi-lo Blunt Point (2)		Appelez-nous	-
26	4387043		Lid, Detergent Dispenser Assembly   (Replaces: 300155)				$ 42.50
27	WP8066018		Spring, Lid   (Replaces: 300106)			Immediately	$ 7.15
32	300119		Lever, Catch		Appelez-nous	-
33	300105		Seal, Lever				$ 5.70
34	718250		Screw, 8-18 X .62		Appelez-nous	-
35	300104		Retainer		Appelez-nous	-
38	300109		Actuator		Appelez-nous	-
39	718250		Screw, 8 X 1/2 Hi-lo Blunt Point (1)		Appelez-nous	-
40	302866		Spacer, Timer		Appelez-nous	-
41	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
42	303223		Barrier, Door		Appelez-nous	-
43	301971		Edging, Panel		Appelez-nous	-
44	W11693756		Screw, 8-18 X 5/8 (2)   (Replaces: 688983)			Immediately	$ 12.65
45	303222		Barrier, Console		Appelez-nous	-
46	WP90767		Screw, 8 X 3/8 Hex Washer Head Tapping Ground (1)   (Replaces: 90767)			Immediately	$ 7.04
48	N/A		Panel, Front		Appelez-nous	-
49	302593		Trim, Door (r.h.)		Appelez-nous	-
49	302594		Trim, Door (l.h.)		Appelez-nous	-
60	716425		Spring, Door		Appelez-nous	-
61	716401		Retainer, Spring				$ 35.28
62	N/A		Panel, Access		Appelez-nous	-
63	302591		Cap, End (l.h.)		Appelez-nous	-
63	302590		Cap, End (r.h.)		Appelez-nous	-
64	719581		Foot (2)		Appelez-nous	-
65	719266		Screw, 8-18 X 5/8		Appelez-nous	-
66	302595		Overlay Accessory Panel		Appelez-nous	-
67	718576		Cap, Drip		Appelez-nous	-
74	WP488627		Screw, 8-18 X 1/2 (4)   (Replaces: 300128)				$ 6.81
77	300237		Washer (2)		Appelez-nous	-
78	WP90767		Screw, 8 X 3/8 Hex Washer Head Tapping (2)   (Replaces: 90767)			Immediately	$ 7.04
82	WP98165		Screw (3)   (Replaces: 98165)				$ 7.20
84	WP488163		Screw, 8-18 X 1/2 (2)   (Replaces: 98810)				$ 6.79
85	718646		Acutator Assembly		Appelez-nous	-
86	718596		Plate		Appelez-nous	-
87	718595		Diaphragm, Pin Assembly		Appelez-nous	-
88	718592		Spring, Conical		Appelez-nous	-
89	300230		Lever, Release		Appelez-nous	-
90	301957		Spacer, Panel		Appelez-nous	-
91	301582		Screw, 6-32 X 1		Appelez-nous	-
92	302251		Screw, 8 X 1/2 (6)		Appelez-nous	-
93	715779		Bumper		Appelez-nous	-
94	301857		Clip, Wire		Appelez-nous	-
95	303121		Retainer, Clip		Appelez-nous	-
96	303362		Shield, Harness		Appelez-nous	-
97	WP90767		Screw, 8a X 3/8 Hex Head Tapping   (Replaces: 90767)			Immediately	$ 7.04
