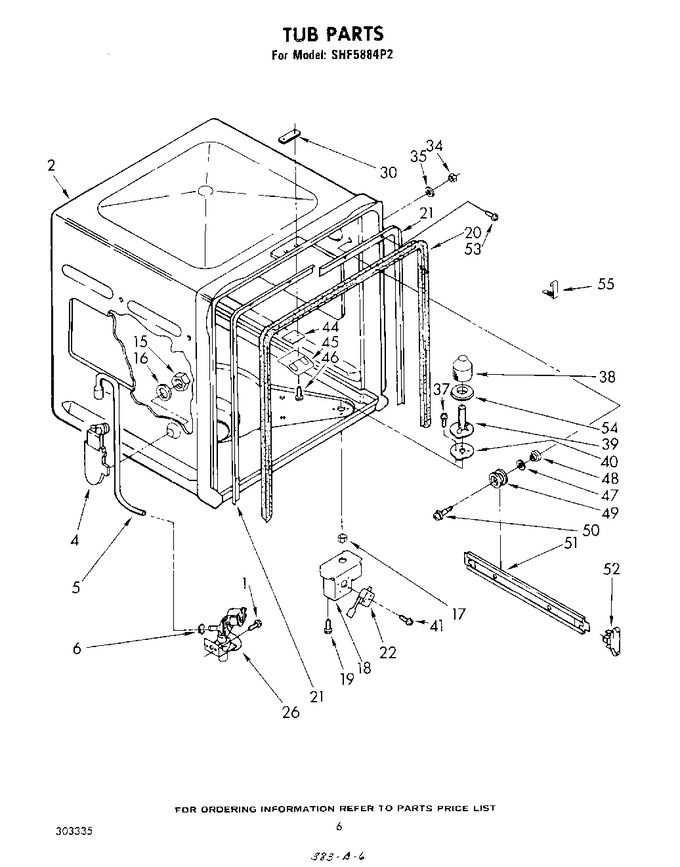

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP90767		Screw, 8a X 3/8 (2)   (Replaces: 90767)			Immediately	$ 7.04
2	303110		Tub Assembly		Appelez-nous	-
4	300974		Inlet, Water		Appelez-nous	-
5	301053		Hose, Inlet		Appelez-nous	-
6	WP596669		Clamp   (Replaces: 301958)			Immediately	$ 7.56
15	713799		Nut, 7/18-16		Appelez-nous	-
16	713878		Gasket		Appelez-nous	-
17	717488		Nut, .125				$ 12.83
18	719342		Bracket, Overflow Switch		Appelez-nous	-
19	718250		Screw, 8 X 1/2 (3)		Appelez-nous	-
20	302091		Gasket (alternate)		Appelez-nous	-
20	302090		Gasket (alternate)		Appelez-nous	-
21	302093		Retainer (r.h.)		Appelez-nous	-
21	302094		Retainer (l.h.)		Appelez-nous	-
22	301672		Switch, Pressure (alternate)		Appelez-nous	-
22	301671		Switch, Pressure		Appelez-nous	-
26	719495		Valve, Water Inlet		Appelez-nous	-
30	303080		Nut, Twin Spring		Appelez-nous	-
34	718829		Locknut (8)		Appelez-nous	-
35	717624		Washer (8)		Appelez-nous	-
37	WP488729		Screw, 8-18 X .50   (Replaces: 717236)			Immediately	$ 7.01
38	718035		Float		Appelez-nous	-
39	719967		Standpipe, Overflow		Appelez-nous	-
40	719966		Gasket, Overflow		Appelez-nous	-
41	98086		Screw, 4-40 X 3/4		Appelez-nous	-
44	712302		Shim		Appelez-nous	-
45	300233		Strike		Appelez-nous	-
46	WP308685		Screw, 10-16 X 1/2 (2)   (Replaces: 9416643)			Immediately	$ 7.08
47	718750		Washer (8)		Appelez-nous	-
48	718817		Washer, Cup (8)		Appelez-nous	-
49	300844		Wheel Tub (8)		Appelez-nous	-
50	712499		Screw, Shoulder (8)		Appelez-nous	-
51	300846		Track (2)		Appelez-nous	-
52	300845		End Cap, Track (4)				$ 7.63
53	719266		Screw, 8-18 X 5/8 (10)		Appelez-nous	-
54	301662		Gasket, Standpipe (2)		Appelez-nous	-
55	799640		Kit, Epoxy Patch (white)		Appelez-nous	-
55	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
55	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
55	301663		Clip, Gasket (2)		Appelez-nous	-
55	303027		Instructions, Installation		Appelez-nous	-
55	302961		Guide, Use & Care		Appelez-nous	-
55	302774		Tag, Energy Fact		Appelez-nous	-
55	303335		List, Repair Parts		Appelez-nous	-
55	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 54.25
55	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 98.33
55	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
55	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
55	261888		New Avocado		Appelez-nous	-
55	261886		Coffee		Appelez-nous	-
55	261890		Golden Harvest		Appelez-nous	-
55	285006		Paint, Spray 13 Oz. (black)			Immediately	$ 51.34
55	350942		Primer (white)   (Replaces: 206922)				$ 80.69
55	206925		Leveler (thinner) (2oz.)		Appelez-nous	-
55	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
55	799351		Thinner (1 Gal.)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	261887		Xcoffee (uncut)		Appelez-nous	-
	261891		Xgolden Harvest (uncut)		Appelez-nous	-
	261889		Xnew Avocado (uncut)		Appelez-nous	-
	978883		Almond (uncut)		Appelez-nous	-
