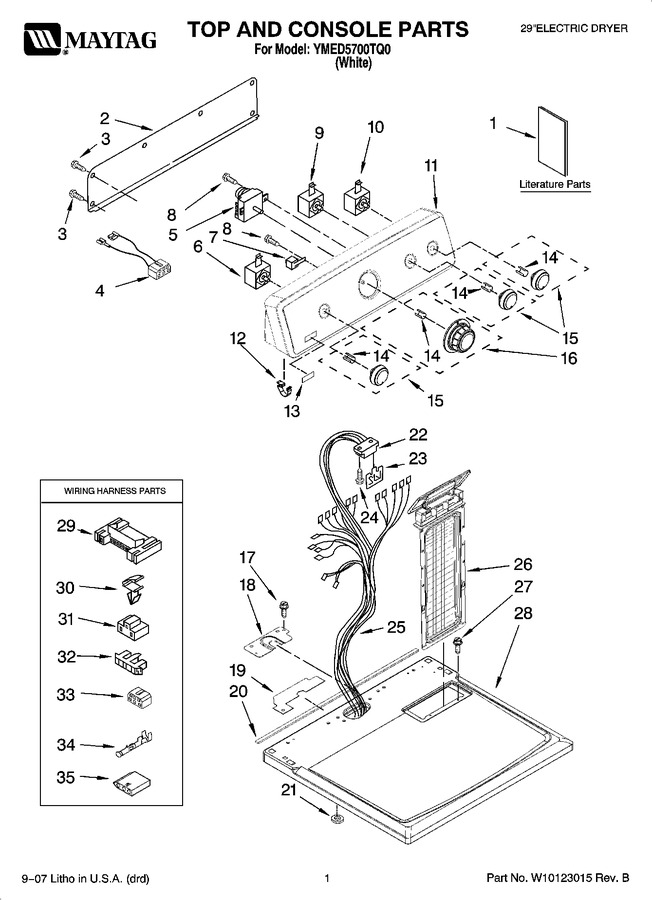

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10089171 | Sheet, Cycle Feature |
|
- | |||||
| 1 | W10118081 | Wiring Diagram |
|
- | |||||
| 1 | W10088770 | Use & Care Guide |
|
- | |||||
| 2 | W10112576 | Panel, Rear |
|
$ 61.99 | |||||
| 3 | WP693995 | Screw 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 6.47 | ||||
| 4 | W10113080 | Wire, Jumper (buzzer On/off) |
|
- | |||||
| 5 | WP8566184 | Timer, 60 Hz. (Replaces: 8566184) |
|
Immediately | $ 249.38 | ||||
| 6 | WP3405156 | Switch Rotary (twist Mount) (Replaces: 3405156) |
|
$ 130.96 | |||||
| 7 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 114.90 | |||||
| 8 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 7.04 | ||||
| 9 | WP8578354 | Switch, Temperature (Replaces: 8578354) |
|
Immediately | $ 155.73 | ||||
| 10 | WPW10117655 | Switch, Push-to-start (Replaces: W10117655) |
|
Immediately | $ 77.04 | ||||
| 11 | W10086710 | Console & Shell Assembly (includes Items 12 & 13) |
|
- | |||||
| 12 | WP8312709 | Clip-console (Replaces: 8312709) |
|
Immediately | $ 14.72 | ||||
| 13 | W10203949 | Badge Assembly (Replaces: W10112569) |
|
$ 61.75 | |||||
| 14 | WP8536939 | Clip Spring (Replaces: 8536939) |
|
Immediately | $ 7.03 | ||||
| 15 | WPW10110029 | Knob, Control (3) (Replaces: W10110029) |
|
$ 47.49 | |||||
| 16 | W10110030 | Timer-knob Assembly |
|
$ 26.39 | |||||
| 17 | WP33001882 | Screw, 8-18 X 3/4 (Replaces: 337686) |
|
$ 71.75 | |||||
| 18 | 8565981 | Bracket, Harness |
|
- | |||||
| 19 | W10118608 | Seal-harness |
|
- | |||||
| 20 | W10112267 | Seal, Foam Console Bracket |
|
$ 83.60 | |||||
| 21 | 237446 | Washer (top/chute) |
|
- | |||||
| 22 | 3391885 | Connector, Edge |
|
$ 77.76 | |||||
| 23 | WPW10476828 | Control, Electronic (Replaces: 8558178) |
|
Immediately | $ 282.80 | ||||
| 24 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 25 | W10115064 | Harness, Wiring |
|
- | |||||
| 26 | W11778253 | Screen, Lint (Replaces: 8565972) |
|
Immediately | $ 46.83 | ||||
| 27 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 12.65 | ||||
| 28 | W10112599 | Top |
|
$ 148.65 | |||||
| 29 | 3395683 | Connector, Motor |
|
Immediately | $ 46.67 | ||||
| 30 | WP3394427 | Clip-harness (Replaces: 3394427) |
|
$ 7.01 | |||||
| 31 | 3401144 | Connector (pts) Relay |
|
$ 10.98 | |||||
| 32 | 3397269 | Connector-timer |
|
$ 25.55 | |||||
| 33 | 3347243 | Connector 6-circuit |
|
- | |||||
| 34 | WP94614 | Terminal (Replaces: 94614) |
|
$ 6.90 | |||||
| 35 | 3936144 | Connector |
|
$ 18.19 |
