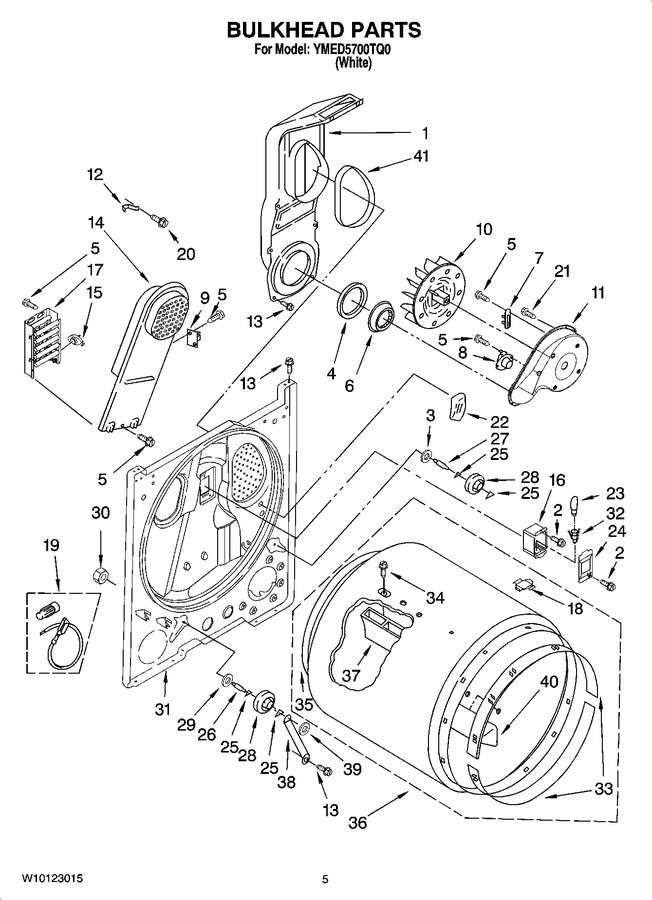

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11117429		Lint Chute Assembly   (Replaces: 348368)				$ 157.51
2	WP488729		Screw, 8-15 X 1/2   (Replaces: 487909)			Immediately	$ 7.01
3	99002633		Thermostat, Limiting				$ 33.69
4	W11415783		Seal, Lint Chute   (Replaces: 347139)			Immediately	$ 16.41
5	WP90767		Screw, 8/18 X 3/8   (Replaces: 90767)			Immediately	$ 7.04
6	W11233063		Shield, Exhaust   (Replaces: 696302)				$ 20.06
7	WP3392519		Fuse, Thermal (91 C)   (Replaces: 3392519)			Immediately	$ 22.46
8	WP8318268		Thermostat, Internal-bias   (Replaces: 8318268)			Immediately	$ 72.51
9	279816		Thermal, Cut-off (includes Item 15)   (Replaces: 3977393)			Immediately	$ 54.64
10	WP694089		Wheel, Blower   (Replaces: 694089)			Immediately	$ 33.89
11	WP8577230		Housing, Blower   (Replaces: 8577230)				$ 160.16
12	279771		Clip   (Replaces: 3398161)				$ 12.90
13	WP681414		Screw, 10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
14	WP8541818		Box, Heater   (Replaces: 8541818)				$ 211.33
15	WP3977767		Thermostat, 221°f (105°c)   (Replaces: 3977767)			Immediately	$ 23.48
16	3977373		Bracket, Drum Light				$ 95.21
17	W10815654		Element, Heater   (Replaces: 3403590)			Immediately	$ 82.53
18	8066086		Drum Hole Plug				$ 9.68
19	279457		Wire Kit, Terminal (for Heater Element Wiring Harness Repair)			Immediately	$ 7.13
20	WP489463		Screw, 8-18 X 5/8   (Replaces: 489463)				$ 7.04
21	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.01
22	W10816105		Pad, Sensor   (Replaces: 3976479)				$ 136.81
23	WP22002263		Bulb   (Replaces: 3406124)			Immediately	$ 12.29
24	W11226088		Lens, Drum Light   (Replaces: 3402841)				$ 27.98
25	WPW10512946		Ring Tri   (Replaces: 690997)			Immediately	$ 7.92
26	WPW10359270		Shaft, L.h.   (Replaces: 3399506)			Immediately	$ 65.44
27	WPW10359269		Shaft, R.h.   (Replaces: 3399507)			Immediately	$ 42.57
28	349241T		Roller, Support   (Replaces: 3397590)			Immediately	$ 26.58
29	WP348197		Washer, Support   (Replaces: 348197)				$ 6.47
30	WP3359452		Nut, 3/8-16   (Replaces: 3359452)			Immediately	$ 6.47
31	W10828905		Bulkhead   (Replaces: 3403414)			Immediately	$ 323.37
32	W11700522		Socket Assembly   (Replaces: W10136369)				$ 65.84
33	279441		Ring, Bearing (2)   (Replaces: 692526)			Immediately	$ 59.60
34	WPW10109200		Screw, 11-16 X 3/4   (Replaces: W10109200)			Immediately	$ 7.20
35	W10612022		Seal, Rear Drum   (Replaces: 3406130)			Immediately	$ 51.44
36	W10899578		Drum, Assembly   (Replaces: 695587)				$ 321.89
37	WP692490		Baffle, Drum (2)   (Replaces: 692490)				$ 143.34
38	W11684613		Bracket, Support   (Replaces: 3976434)				$ 18.85
39	WP90296		Clip   (Replaces: 90296)				$ 7.07
40	WP3403636		Baffle-drum (1)   (Replaces: 3403636)				$ 124.79
41	WP339956		Seal   (Replaces: 339956)			Immediately	$ 7.77
NI	72017		Paint, Touch-up (1/2oz.) White			Immediately	$ 11.07
NI	4392065		Kit, Dryer Repair   (Replaces: 279948)			Immediately	$ 48.47
NI	3406839		Dry Rack			Immediately	$ 59.11
NI	W11224254		Kit, Dryer Vent Testing   (Replaces: 8522199)				$ 10.58
NI	350930		Paint, Pressurized Spray (12 Oz.) ( White)			Immediately	$ 34.39
NI	350938		Paint, Pressurized Spray (12 Oz.) (primer, Gray)		Appelez-nous	-
NI	799344		Paint, Bulk (1 Qt.) (white (uncut))				$ 237.46
