SELECT A DIAGRAM

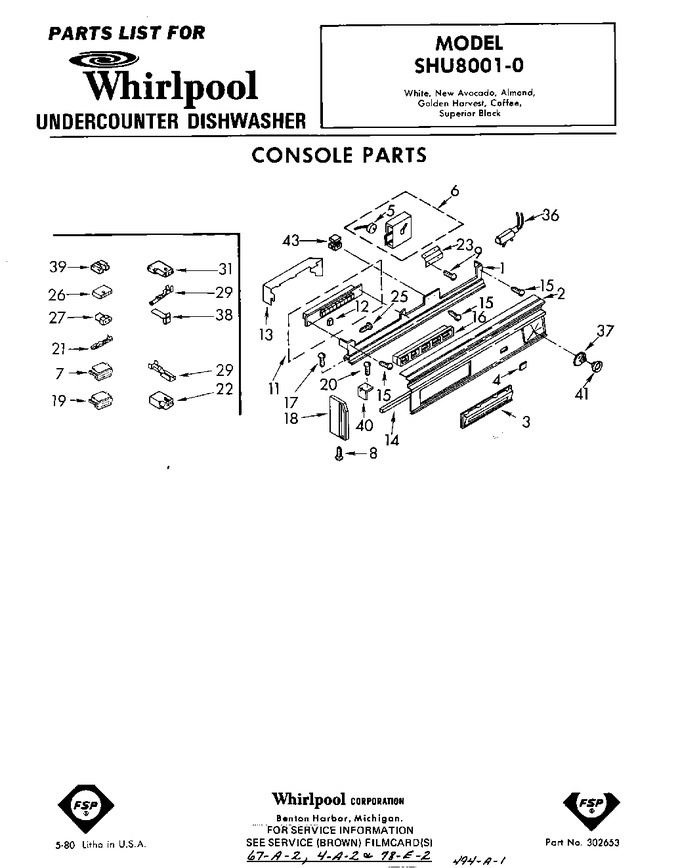

01 - Console


02 - Tub , Lit/optional


03 - Door


04 - Pump And Motor


05 - Dishrack


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	300750		Bracket, Console		Appelez-nous	-
2	301933		Panel, Escutcheon		Appelez-nous	-
3	302259		Bezel Assembly, Pushbutton		Appelez-nous	-
4	302227		Lens, Light Indicator		Appelez-nous	-
5	301062		Motor, Timer		Appelez-nous	-
6	302565		Timer, Disconnect		Appelez-nous	-
7	352090		Block, Disconnect (white)		Appelez-nous	-
8	358225		Screw, 8-18		Appelez-nous	-
9	WP356418		Screw   (Replaces: 96435)				$ 7.13
11	302065		Switch, Pushbutton		Appelez-nous	-
12	301978		Button (8)		Appelez-nous	-
13	300242		Barrier, Pushbutton Switch		Appelez-nous	-
14	719860		Baffle		Appelez-nous	-
15	WP489128		Screw,   (Replaces: 98209)				$ 9.79
16	301878		Grille, Vent		Appelez-nous	-
17	WP487353		Screw, 6-20 X .38   (Replaces: 301502)				$ 6.81
18	301877		Cap, End (r.h.)		Appelez-nous	-
18	301934		Cap, End (l.h.)		Appelez-nous	-
19	W10876590		Block, Disconnect (black)   (Replaces: 352089)				$ 11.48
20	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 12.65
21	352088		Terminal, Female (disconnect Block)				$ 5.83
22	717252		Receptacle, Terminal (timer Motor)		Appelez-nous	-
23	301875		Bracket, Timer Mounting		Appelez-nous	-
25	WP488627		Screw, 8-18 X 1/2   (Replaces: 300128)				$ 6.81
26	719585		Connector, Terminal (motor)		Appelez-nous	-
27	727253		Plug, Terminal (timer Motor)		Appelez-nous	-
29	WP94614		Terminal (female)   (Replaces: 94614)				$ 6.90
29	94613		Terminal, (male)		Appelez-nous	-
31	353425		Receptacle (wetting Agent Dispenser)		Appelez-nous	-
36	302184		Light Assembly		Appelez-nous	-
37	302067		Dial, Indicator		Appelez-nous	-
38	302162		Retainer, Harness		Appelez-nous	-
39	300708		Block, Connector		Appelez-nous	-
40	301872		Bracket, End Cap		Appelez-nous	-
41	302180		Knob, Timer		Appelez-nous	-
43	301536		Relay (alternate)		Appelez-nous	-
43	300516		Relay (alternate)		Appelez-nous	-
43	301620		Relay, Start (alternate)		Appelez-nous	-
