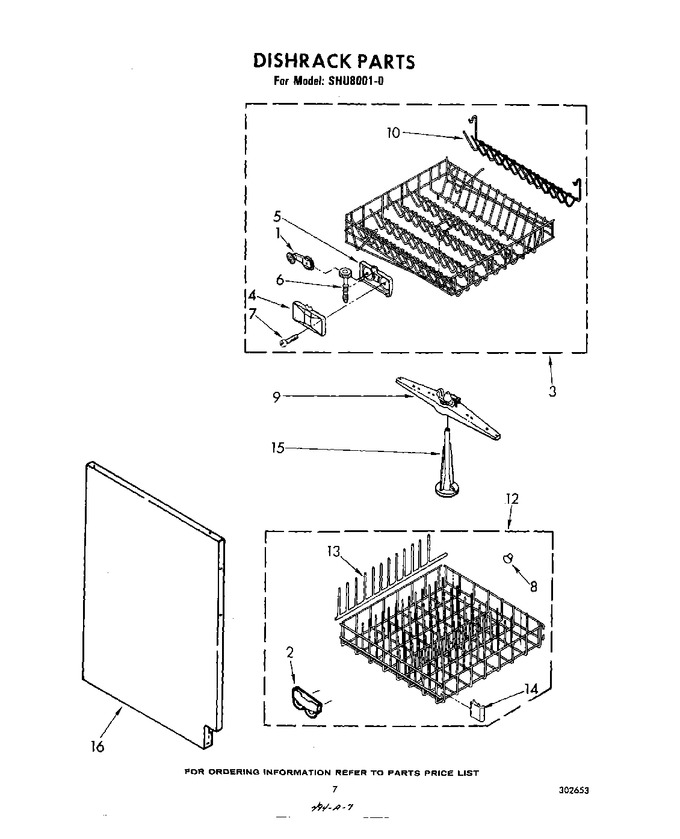

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Console
02 - Tub , Lit/optional
03 - Door
04 - Pump And Motor
05 - Dishrack
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 302025 | Wheel & Gear Assembly (4) |
|
- | |||||
| 2 | 4317933 | Wheel & Shroud Assembly (4) (Replaces: 717509) |
|
$ 43.80 | |||||
| 3 | W11169039 | Dishrack, Upper (Replaces: 302061) |
|
Immediately | $ 182.83 | ||||
| 4 | 302029 | Cover, Housing |
|
- | |||||
| 5 | 302028 | Housing, Gear |
|
Immediately | $ 108.39 | ||||
| 6 | 302026 | Worm, Dishrack |
|
- | |||||
| 7 | WP9741232 | Screw (Replaces: 301077) |
|
Immediately | $ 4.56 | ||||
| 8 | 715779 | Bumper (1) |
|
- | |||||
| 9 | 302020 | Spray Arm Assembly |
|
- | |||||
| 10 | 302071 | Shelf, Cup |
|
- | |||||
| 12 | W10311986 | Dishrack, Lower (Replaces: 302057) |
|
Immediately | $ 169.33 | ||||
| 13 | 302052 | Adapter, Rack |
|
- | |||||
| 14 | 719964 | Bumper (2) |
|
- | |||||
| 15 | 302030 | Tower |
|
- | |||||
| 16 | N/A | Panel, R.s. |
|
- |
