SELECT A DIAGRAM

02 - Internal Oven


03 - External Oven


04 - Manifold


05 - Oven Electrical


06 - Oven Door And Drawer


07 - Drawer


08 - Upper Oven


09 - Control Panel

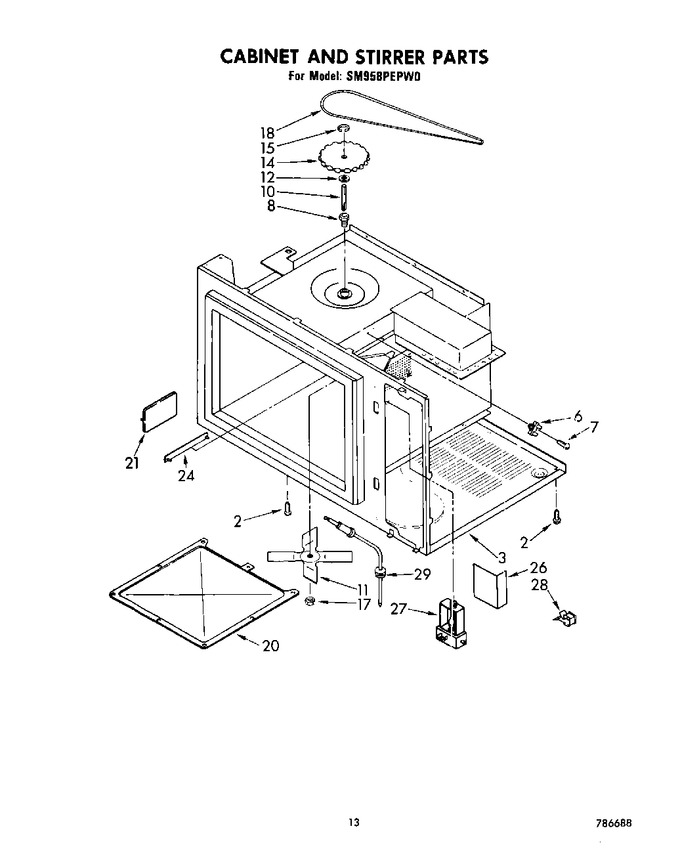

10 - Cabinet And Stirrer


11 - Magnetron And Air Flow


12 - Door And Latch


13 - Wiring Harness, Lit/optional


14 - Cabinet And Hinge


15 - Cooktop


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WP308685		Screw, 10a X 1/2 Truss Haed Phillips (6)   (Replaces: 253549)			Immediately	$ 7.08
6	313440		Thermal Fuse (includes Illus.7)		Appelez-nous	-
7	312713		Screw, 8-32 X 3/8		Appelez-nous	-
8	312023		Bushing, Stirrer		Appelez-nous	-
10	312026		Shaft, Stirrer		Appelez-nous	-
11	309976		Stirrer Blade		Appelez-nous	-
12	312025		Washer, Nylon		Appelez-nous	-
14	311923		Pulley, Stirrer Blade		Appelez-nous	-
15	311999		``e`` Ring		Appelez-nous	-
17	WP487939		Nut, Standard Hex 1/4-20   (Replaces: 311721)				$ 6.95
18	311958		Belt, Drive		Appelez-nous	-
20	313074		Stirrer Cover		Appelez-nous	-
21	307516		Cover, Light		Appelez-nous	-
24	309437		Cover, Rivet		Appelez-nous	-
26	307516		Shield, Exhaust Probe		Appelez-nous	-
27	313458		Jack, Probe		Appelez-nous	-
28	312763		Clip, Harness		Appelez-nous	-
28	346893		Screw 11-16 X 1/2		Appelez-nous	-
29	313527		(alt.)		Appelez-nous	-
29	661164		Probe, Temperature		Appelez-nous	-
29	313044		(alt.)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
