Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 786331 Top, Main (almond) Appelez-nous -
1 786595 Top, Main (toast) Appelez-nous -
1 786596 Top, Main (platinum) Appelez-nous -
1 786332 Top, Main (white) Appelez-nous -
2 WP786333 Bowl, Chrome (4)   (Replaces: 786333) Special Order $ 16.83

4 786343 Trim, Main Top (right Side) Appelez-nous -
4 786344 Trim, Main Top (left Side) Appelez-nous -
5 786354 Grate, Top Burner (4) Appelez-nous -
7 786342 Spacer, Nylon (4) Appelez-nous -
17 786383 Burner Box Appelez-nous -
20 786390 Actuator, Spark Ignitor Appelez-nous -
22 786391 Spring Appelez-nous -
23 786392 Cam (4) Appelez-nous -
25 786394 End Cap (left) Appelez-nous -
25 786393 End Cap (right) Appelez-nous -
26 786395 Panel, Control Appelez-nous -
28 786682 Spud, Orfice Appelez-nous -
29 786683 Plate, Cover Appelez-nous -
31 786684 Bracket, Top (2) Appelez-nous -
32 786754 Bracket, Electrode Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

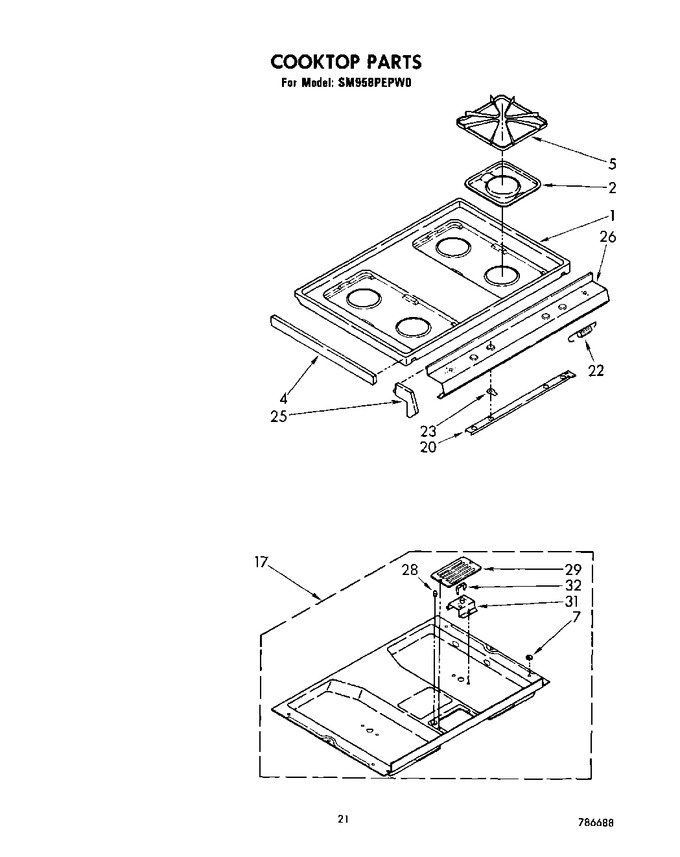

Diagram for SM958PEPW0
