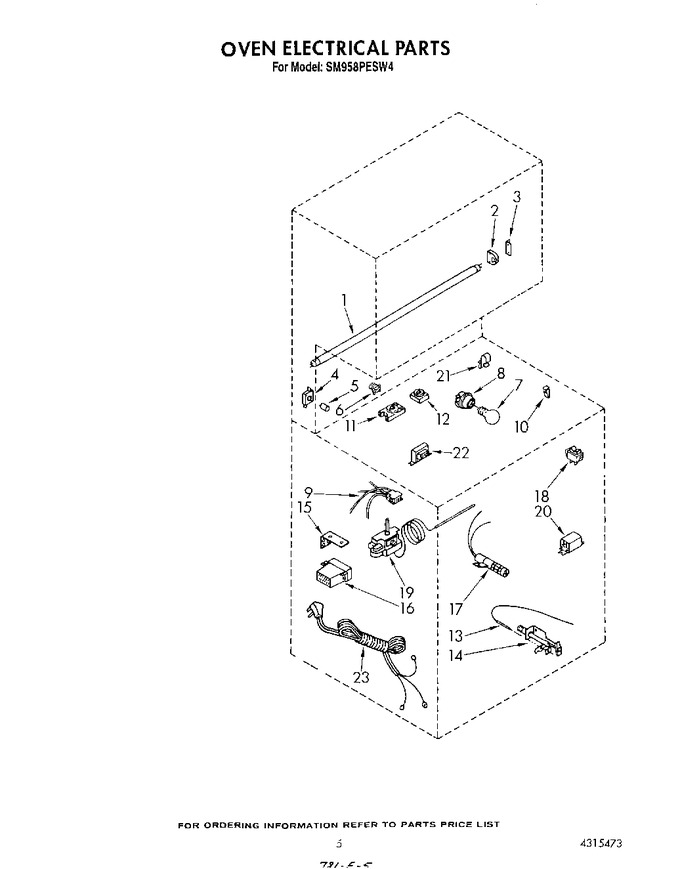

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP95292		Lamp, Fluorescent   (Replaces: 4179348)			Immediately	$ 121.45
2	4157164		Socket, Light (2)		Appelez-nous	-
3	786592		Support Bracket, Socket		Appelez-nous	-
4	786542		Socket, Startor		Appelez-nous	-
5	4157199		Starter, Light		Appelez-nous	-
6	4157221		Strain Relief		Appelez-nous	-
7	8009		Bulb   (Replaces: 4157019)			Immediately	$ 16.80
8	4157020		Receptacle, Light		Appelez-nous	-
9	4157220		Block, Disconnect		Appelez-nous	-
10	4157127		Clip, Wire (2)		Appelez-nous	-
11	WP878009		Switch, Ignitor   (Replaces: 4157210)				$ 103.38
12	WP4157180		Switch, Valve   (Replaces: 4157180)				$ 102.56
13	4315316		Ignitor, Oven		Appelez-nous	-
14	4157179		Pilot		Appelez-nous	-
15	4157171		Plate, Module		Appelez-nous	-
16	4179347		Spark Module		Appelez-nous	-
17	4179205		Ignitor (l.h.)		Appelez-nous	-
17	4179204		Ignitor (r.h.)		Appelez-nous	-
18	4315472		Switch, Oven Light		Appelez-nous	-
19	4179354		Thermostat		Appelez-nous	-
20	4179346		Relay		Appelez-nous	-
21	4179352		Clip, Wire (4) (light Housing)		Appelez-nous	-
22	4157207		Ballast		Appelez-nous	-
23	4179363		Cord, Power		Appelez-nous	-
