Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3148090 Frame, Control Panel Appelez-nous -
2 3147197 Switch Membrane (control Module) Appelez-nous -
2 313818 Screw, 8-32 X 3/16 (6) Appelez-nous -
3 3147283 Bracket, Control (mounting) Appelez-nous -
3 313818 Screw, 8-32 X 3/16 (4) Appelez-nous -
4 WP4314961 Switch, Rocker (2)   (Replaces: 314134) Special Order $ 80.53

5 WP3147265 Switch, Rocker   (Replaces: 3147265) Special Order $ 127.61

6 3147867 Light, Indicator Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

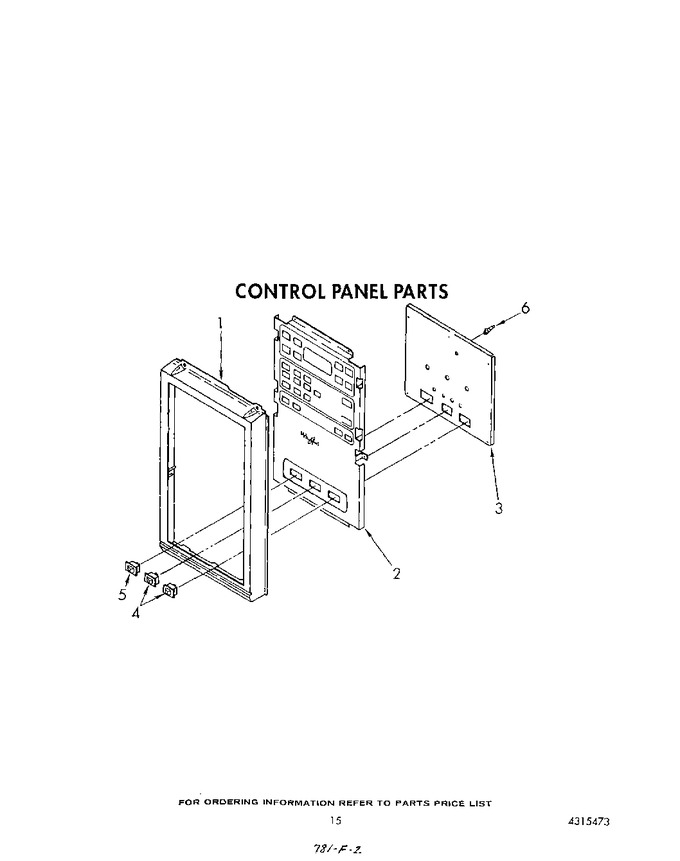

Diagram for SM958PESW4
