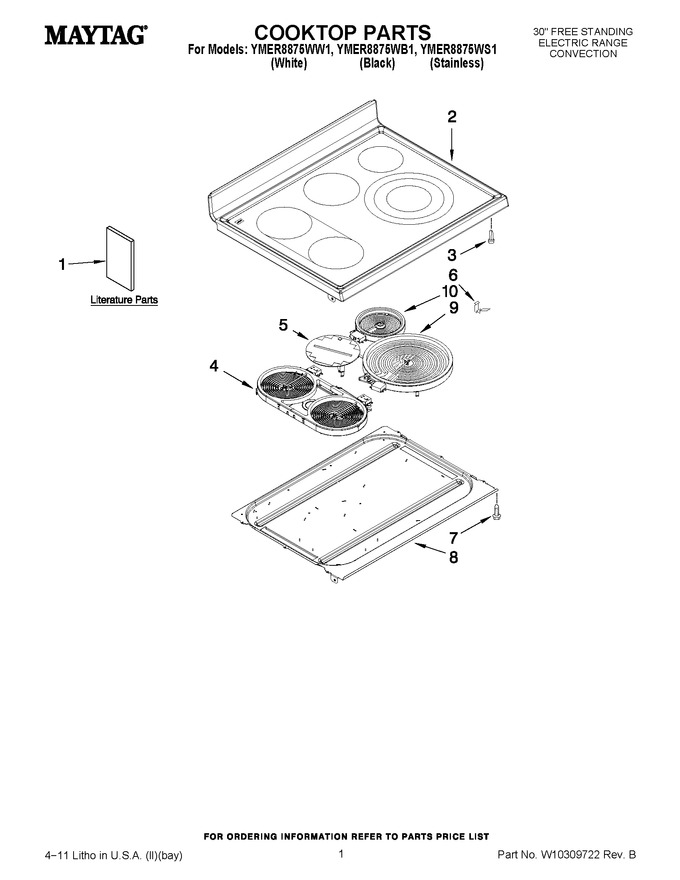

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer And Rack Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10239461 | Use & Care Guide |
|
- | |||||
| 1 | W10239470 | Wiring Diagram (english) |
|
- | |||||
| 1 | W10239471 | Wiring Diagram (french) |
|
- | |||||
| 1 | W10245713 | Installation Instructions |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 2 | W10289900 | Cooktop (white) (Replaces: W10106413) |
|
$ 668.06 | |||||
| 2 | W10106414 | Cooktop (black) |
|
- | |||||
| 3 | 74008761 | Spacer, Snap-in (Replaces: 8010P149-60) |
|
$ 7.55 | |||||
| 4 | W10823695 | Element, Bridge (Replaces: 8285848) |
|
Immediately | $ 291.55 | ||||
| 5 | WP9762851 | Element, Warm (Replaces: 9762851) |
|
Immediately | $ 248.88 | ||||
| 6 | 74007134 | Spring, Element (Replaces: 7803P087-60) |
|
$ 10.51 | |||||
| 7 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.47 | ||||
| 8 | W10170717 | Bottom, Burner Box |
|
- | |||||
| 9 | WPW10162041 | Triple (rf) (Replaces: W10162041) |
|
$ 330.85 | |||||
| 10 | W11171119 | Element (rr) (Replaces: 8273994) |
|
Immediately | $ 164.01 |
