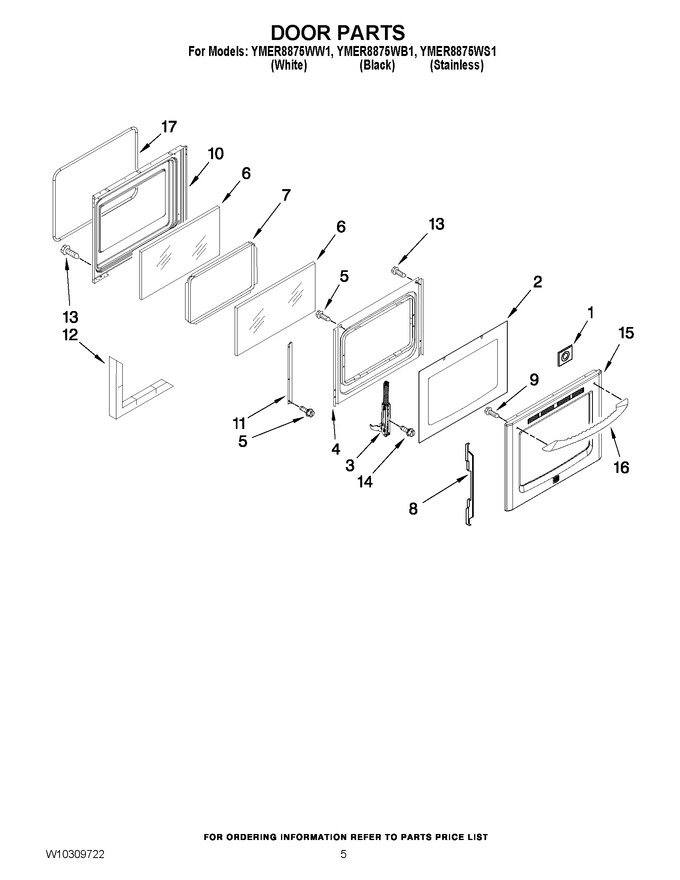

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11190816		Spacer, Handle   (Replaces: 3823F017-45)				$ 14.94
2	W10181725		Door, Glass Oven				$ 96.10
3	74010546		Hinge, Door   (Replaces: 7106P124-60)			Immediately	$ 77.34
4	3601F380-51		Baffel, Retainer				$ 25.83
5	W11233072		Screw 8ab 1/2   (Replaces: 3196178)			Immediately	$ 12.62
6	74003645		Glass, Inner   (Replaces: 7902P436-60)			Immediately	$ 162.53
7	3801F886-51		Frame, Glass Inner				$ 38.25
8	3801P918-51		Bracket, Glass		Appelez-nous	-
9	WPW10241367		Screw, Mounting   (Replaces: W10241367)				$ 6.27
10	2402W297-19		Lining, Door				$ 152.41
11	3801F886-51		Bracket, Glass				$ 38.25
12	7002P246-60		Insulation, Door				$ 58.49
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 12.62
14	WP4159193		Screw 10-24x5/16   (Replaces: 7101P282-60)				$ 4.29
15	W10172590		Glass, Door (white)		Appelez-nous	-
15	W10097300		Glass, Door (stainless Steel)				$ 339.10
15	W10214541		Glass, Door (black)				$ 246.20
16	WPW10171747		Handle, Door (white)   (Replaces: W10171747)				$ 253.81
16	WPW10161708		Handle, Door (stainless Steel)   (Replaces: W10161708)				$ 319.73
16	WPW10171748		Handle, Door (black)   (Replaces: W10171748)				$ 249.45
17	W10306689		Gasket, Door				$ 72.98
