Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 786808 Wrapper, Drawer Appelez-nous -
2 786809 Frame, Side (right Side) Appelez-nous -
2 786810 Frame, Side (left Side) Appelez-nous -
3 786811 Track, Drawer (r.h.) Appelez-nous -
3 786812 Track, Drawer (l.h.) Appelez-nous -
4 786813 Runner (l.h.) Appelez-nous -
4 786814 Runner (r.h.) Appelez-nous -
5 786668 Liner, Drawer Appelez-nous -
6 786522 Panel, Drawer (white) Appelez-nous -
6 786520 Panel, Drawer (toast) Appelez-nous -
6 786519 Panel, Drawer (platinum) Appelez-nous -
6 786521 Panel, Drawer (almond) Special Order $ 45.18

7 786807 Rack, Literarure Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

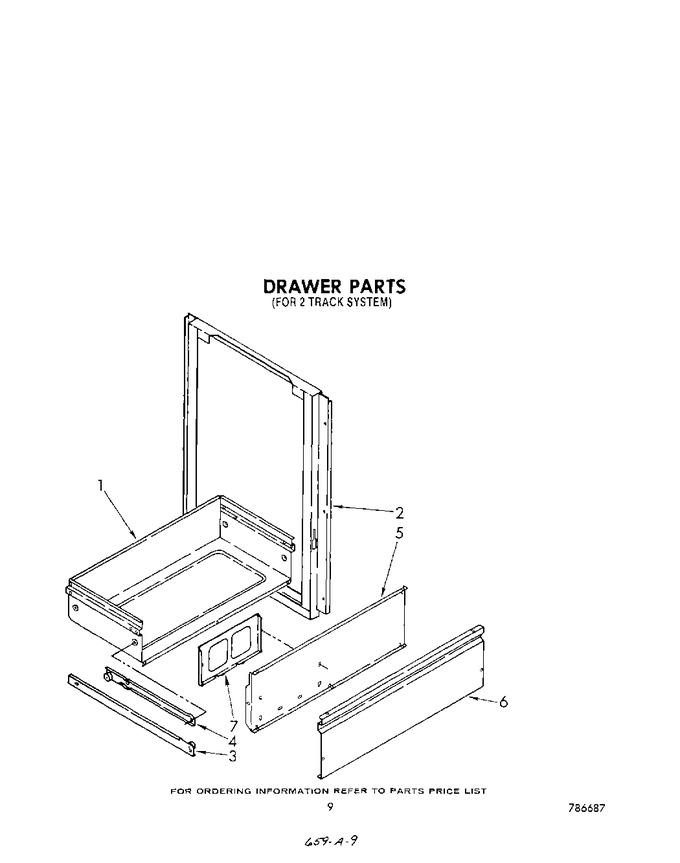

Diagram for SM988PEPW0
