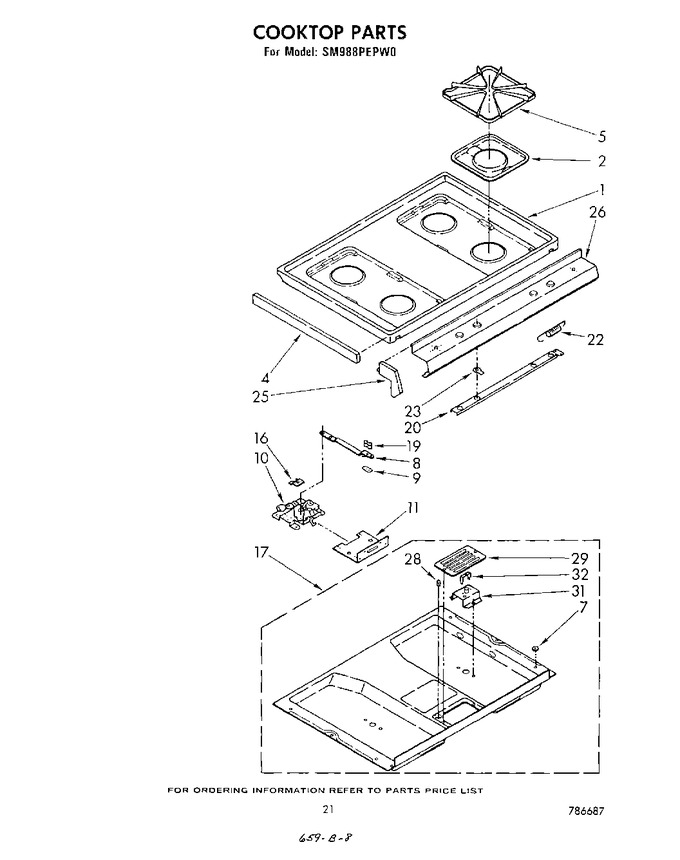

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 786331 | Top, Main (almond) |
|
- | |||||
| 1 | 786596 | Top, Main (toast) |
|
- | |||||
| 1 | 786595 | Top, Main (platinum) |
|
- | |||||
| 1 | 786332 | Top, Main (white) |
|
- | |||||
| 2 | WP786333 | Bowl, Chrome (Replaces: 786333) |
|
$ 16.83 | |||||
| 4 | 786343 | Trim, Main Top (right Side) |
|
- | |||||
| 4 | 786344 | Trim, Main Top (left Side) |
|
- | |||||
| 5 | 786354 | Grate, Top Burner |
|
- | |||||
| 7 | 786342 | Spacer, Nylon (2) |
|
- | |||||
| 8 | 786376 | Handle, Latch |
|
- | |||||
| 9 | 786690 | Support, Latch |
|
- | |||||
| 10 | 786303 | Latch Assembly |
|
- | |||||
| 11 | 786378 | Bracket, Mounting Latch |
|
- | |||||
| 16 | 786381 | Bracket, Switch |
|
- | |||||
| 17 | 786383 | Burner Box |
|
- | |||||
| 19 | 786386 | Knob, Latch Handle |
|
- | |||||
| 20 | 786390 | Actuator, Spark Ignitor |
|
- | |||||
| 22 | 786391 | Spring |
|
- | |||||
| 23 | 786392 | Cam (4) |
|
- | |||||
| 25 | 786394 | End Cap (left) |
|
- | |||||
| 25 | 786393 | End Cap (right) |
|
- | |||||
| 26 | 786395 | Panel, Control |
|
- | |||||
| 28 | 786682 | Orifice |
|
- | |||||
| 29 | 786683 | Plate, Cover |
|
- | |||||
| 31 | 786684 | Ignitor, Top (2) |
|
- | |||||
| 32 | 786754 | Bracket, Electrode (2) |
|
- |
