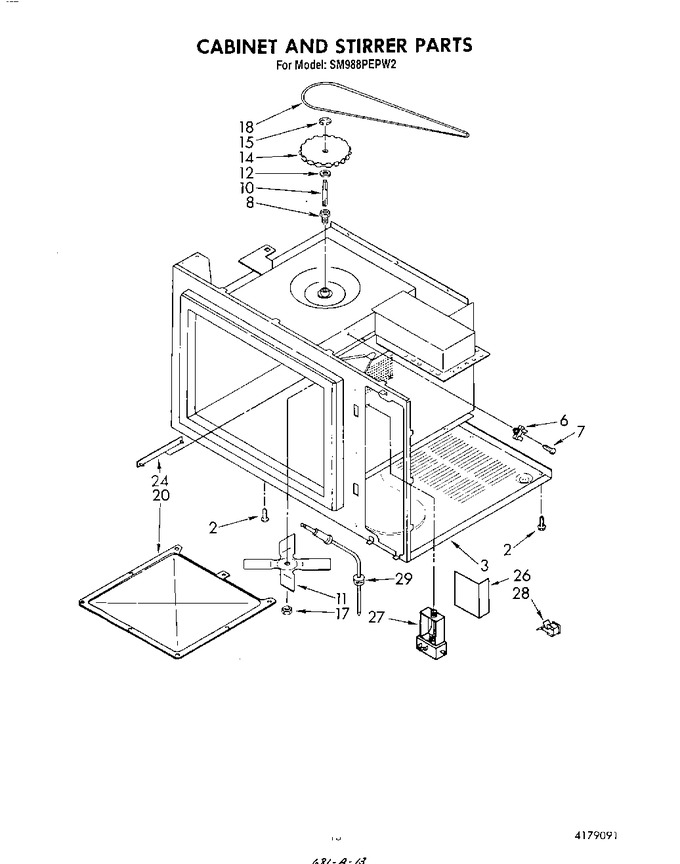

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WP308685 | Screw, 10a X 1/2 Truss Head Phillips (6) (Replaces: 253549) |
|
Immediately | $ 7.08 | ||||
| 6 | 313440 | Thermal Fuse (includes Illus.7) |
|
- | |||||
| 7 | 312713 | Screw, 8-32 X 3/8 |
|
- | |||||
| 8 | 312023 | Bushing, Stirrer |
|
- | |||||
| 10 | 312026 | Shaft, Stirrer |
|
- | |||||
| 11 | 309976 | Stirrer Blade |
|
- | |||||
| 12 | 312025 | Washer, Nylon |
|
- | |||||
| 14 | 311923 | Pulley, Stirrer Blade |
|
- | |||||
| 15 | 311999 | ``e`` Ring |
|
- | |||||
| 17 | WP487939 | Nut, Standard Hex 1/4-20 (Replaces: 311721) |
|
$ 6.95 | |||||
| 18 | 311958 | Belt, Drive |
|
- | |||||
| 20 | 313074 | Stirrer Cover |
|
- | |||||
| 24 | 309437 | Cover, Rivet |
|
- | |||||
| 26 | 307516 | Shield, Exhaust Probe |
|
- | |||||
| 27 | 313458 | Jack, Probe |
|
- | |||||
| 28 | 312763 | Clip, Harness |
|
- | |||||
| 29 | 313527 | Prboe, Temperature (alt.) |
|
- | |||||
| 29 | 661164 | Prboe, Temperature |
|
- | |||||
| 29 | 313044 | Prboe, Temperature (alt.) |
|
- |
