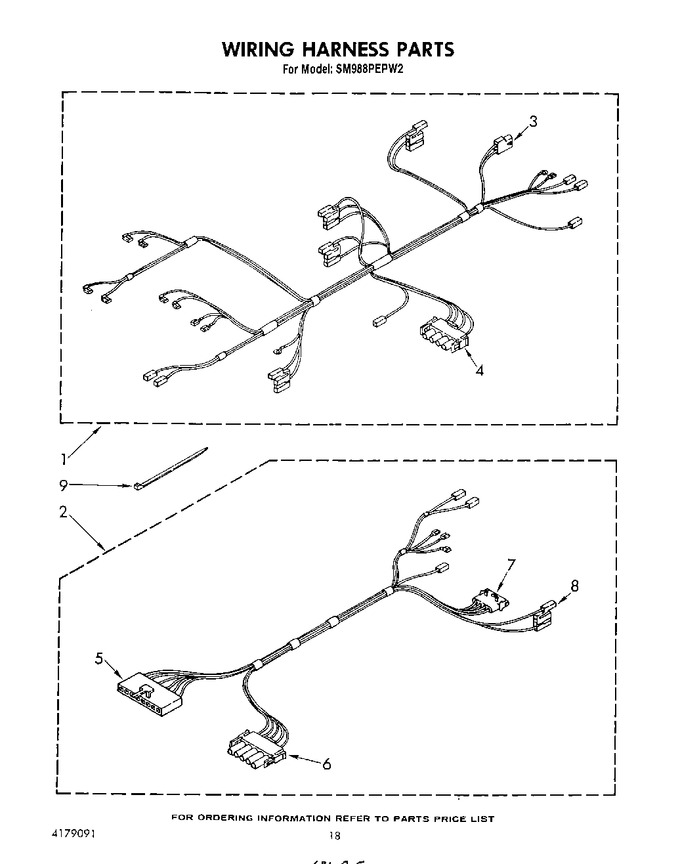

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 313415 | Harness, Wiring (main) |
|
- | |||||
| 1 | 246135 | Screw, 8d X 5/16 |
|
- | |||||
| 2 | 313417 | Harness, Wiring (control) |
|
- | |||||
| 3 | 717252 | Disconnect Block (2 Terminal) |
|
- | |||||
| 4 | 310958 | Disconnect Block (4 Terminal) |
|
- | |||||
| 5 | 308665 | Connector Housing |
|
- | |||||
| 6 | 311574 | Block, Disconnect |
|
- | |||||
| 7 | 310960 | Disconnect Block, Female |
|
- | |||||
| 8 | 310241 | Housing, Plug |
|
- | |||||
| 9 | 242826 | Wire, White 14 Ga. 150~c |
|
- | |||||
| 9 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 9 | 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | |||||
| 9 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 9 | WPW10339879 | Tie Cable (Replaces: 309330) |
|
$ 7.11 | |||||
| 9 | WP261869 | Citrine White (1/2 Oz.) (Replaces: 261869) |
|
$ 23.85 | |||||
| 9 | 261900 | Citrine White (6 Oz.) |
|
$ 51.34 | |||||
| 9 | 591014 | Adhesive Loctite (1/3 Oz.) |
|
- | |||||
| 9 | WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 57.16 | ||||
| 9 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 9 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 9 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 9 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 9 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 9 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 9 | 242829 | Wire, Red 12 Ga. 150~c |
|
- | |||||
| 9 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 9 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| LIT311895 | Cookbook |
|
- | ||||||
| LIT4179091 | List, Repair Parts |
|
- | ||||||
| LIT786302 | Guide, Cooking |
|
- | ||||||
| LIT786301 | Instructions, Installation |
|
- | ||||||
| LIT4157744 | Guide, Use & Care (range) |
|
- | ||||||
| LIT312880 | Guide, Use & Care (microwave) |
|
- |
