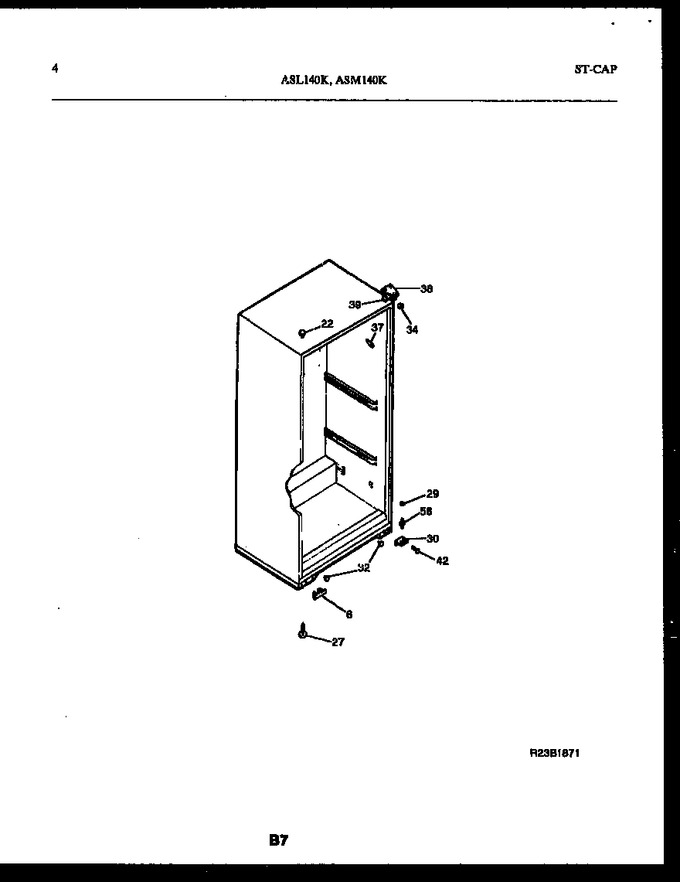

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	3206135		Cover-lwr Hng Screw		Appelez-nous	-
22	5303001389		Plug-button, Almond, Upr Hinge Holes		Appelez-nous	-
27	23206141		Screw-leveling		Appelez-nous	-
29	5303001038		Washer, .28 X .62 X .19, Nylon				$ 13.34
30	3206136		Bracket-lower Hinge		Appelez-nous	-
32	3206142		Plug-button, Cabinet Base, (2)		Appelez-nous	-
34	5308000007		Washer, .34 X .62 X .05, Nylon		Appelez-nous	-
37	5303202340		Trim, Cabinet Corner, Almond, (4)		Appelez-nous	-
38	3206100		Bracket-upper Hinge		Appelez-nous	-
39	5303001037		Shim - Upper Hinge				$ 12.39
42	3206143		Screw-lwr Hinge Mtg, Hex Washer Hd, 1/4-20 X 5/8, (4)		Appelez-nous	-
56	5303001321		Pin-lower Hinge				$ 17.25
*58772	5303210622		Pad-rear Base		Appelez-nous	-
*58772	5303001288		Plug-button, Liner		Appelez-nous	-
38A	241710601		Screw   (Replaces: 5303001479)				$ 13.46
38B	5308012296		Tapping Plate, Upper Hinge, (2) (non-illustrated)				$ 47.44
