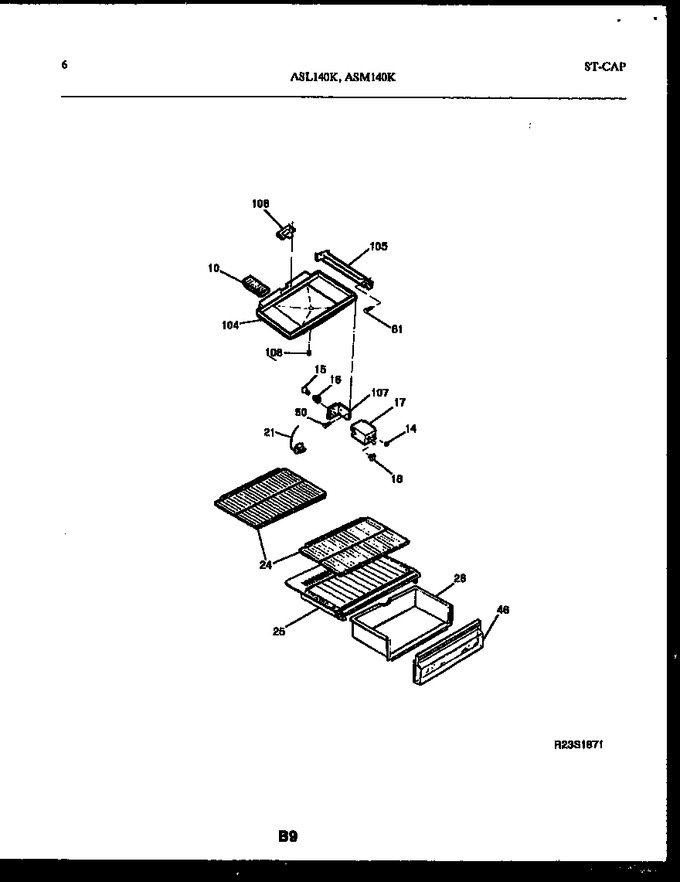

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 5303001324 | Tray-ice, Plastic |
|
- | |||||
| 14 | 5309918806 | Switch, Light |
|
Immediately | $ 21.97 | ||||
| 15 | 5303001179 | Light Bulb/lamp |
|
- | |||||
| 16 | 5308000129 | Socket-light/lamp |
|
$ 62.16 | |||||
| 17 | 5303209951 | Box-control |
|
- | |||||
| 18 | 5303209953 | Knob-temp Control |
|
- | |||||
| 21 | 5316266703 | Control-temperature |
|
- | |||||
| 24 | 5303284789 | Shelf-sliding, Refr, (2) |
|
- | |||||
| 25 | 5303209935 | Cover-crisper Pan |
|
- | |||||
| 26 | 5303209937 | Pan-crisper, Full-width |
|
$ 231.16 | |||||
| 46 | 3206106 | Front-crisper Pan, Full Width |
|
- | |||||
| 60 | 5308010253 | Screw |
|
- | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 104 | 5317766801 | Tray-drip |
|
- | |||||
| 105 | 5300163217 | Support-drip Tray, Rh |
|
- | |||||
| 106 | 5300179612 | Plate-baffle |
|
- | |||||
| 107 | 5300163210 | Bracket-control Mtg |
|
- | |||||
| 108 | 08009779 | Stopper-rubber |
|
- | |||||
| 104A | 5300179982 | Gasket-drip Tray (non-illustrated) |
|
- | |||||
| 106A | 5300179540 | Label-baffle (non-illustrated) |
|
- | |||||
| 106B | 5300183114 | Clip-canoe (non-illustrated) |
|
- | |||||
| 17A | 08003581 | Screw-cntrl Box Mtg, Cr Pan Head, 8-32 X 5/16 (non-illustrated) |
|
- | |||||
| 21A | 5303001260 | Screw |
|
$ 6.73 |
