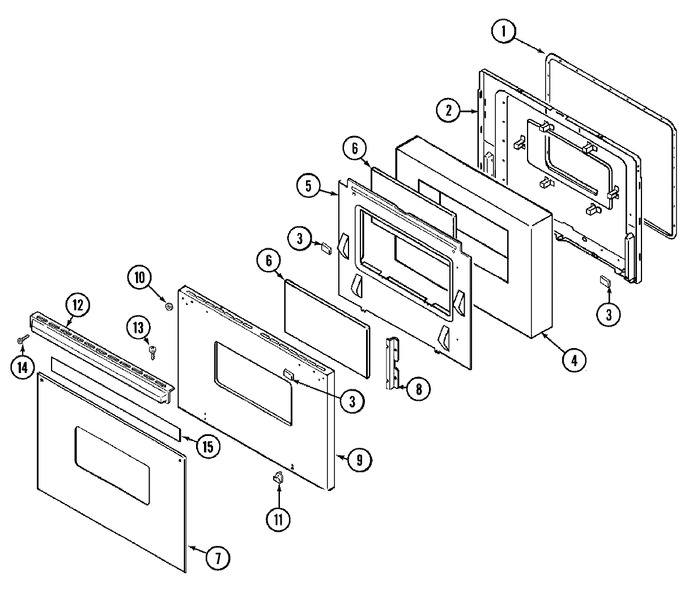

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	14		Immediately	$ 77.61
2	2402W209-19		Lining, Door	14	Appelez-nous	-
3	8010P085-60		Spacer, Rubber	14	Appelez-nous	-
4	74001842		Insulation, Door	14	Appelez-nous	-
5	74001843		Baffle, Door	14	Appelez-nous	-
5	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	14		Immediately	$ 12.62
6	74001841		Glass, Inner	14	Appelez-nous	-
7	7902P351-60		Glass, Door (wht)	14	Appelez-nous	-
8	74001844		Retainer, Glass	14	Appelez-nous	-
8	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	14		Immediately	$ 12.62
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	14		Immediately	$ 12.62
9	2401F123-71		Panel, Door (wht)	14	Appelez-nous	-
10	74003986		Spacer, Glass   (Replaces: 8010P016-60)	14			$ 13.08
11	7112P094-60		Clip, Glass (wht)	14			$ 7.19
11	WP98008544		Screw (1/2``-wht)   (Replaces: 7101P373-60)	14			$ 11.89
12	7701P121-60		Handle, Door (wht)----na	14	Appelez-nous	-
13	WP98008544		Screw (1/2``-wht)   (Replaces: 7101P373-60)	14			$ 11.89
14	7101P324-60		Screw	14	Appelez-nous	-
14	W10080180		Nut   (Replaces: 7103P034-60)	14			$ 12.13
15	8270P090-60		Tape, Foil (3`` Wide)	14	Appelez-nous	-
