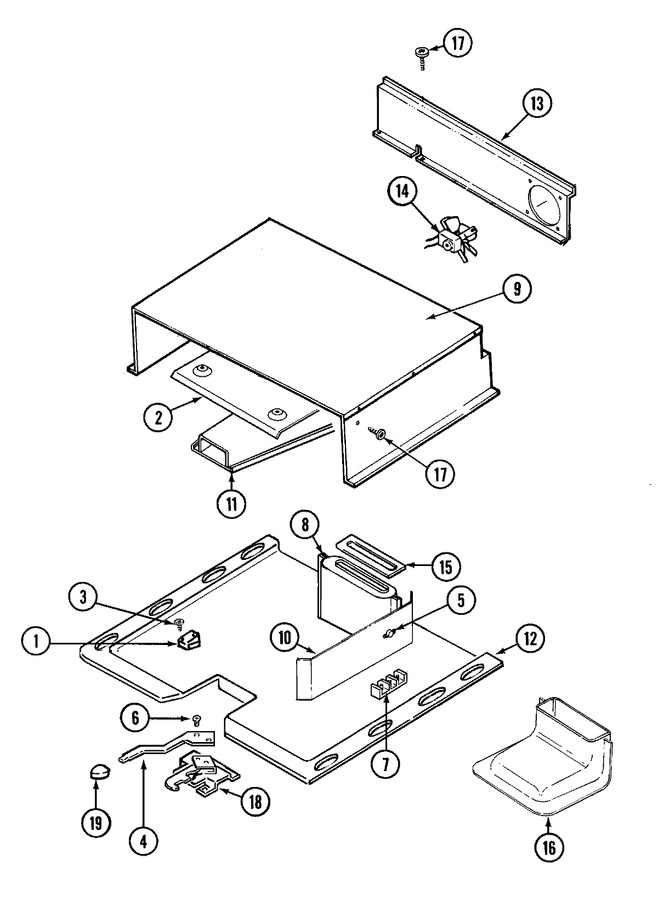

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7403P363-60		Switch, Door Latch	10	Appelez-nous	-
1	7403P361-60		Switch, Door Latch	11	Appelez-nous	-
2	3604F166-45		Shield, Heat	10	Appelez-nous	-
3	7101P330-60		Screw, Switch	11	Appelez-nous	-
3	7101P130-60		Screw, Latch Switch	10	Appelez-nous	-
4	74002973		Lever, Latch (gry)	17	Appelez-nous	-
4	8009P024-60		Lever, Door Latch	10	Appelez-nous	-
4	8009P028-60		Lever, Latch	11	Appelez-nous	-
5	WP59002061		Screw (6abx38-zn)   (Replaces: 7101P077-60)	10			$ 6.98
5	7403P249-60		Switch, Hi Limit	10	Appelez-nous	-
6	WP4159193		Screw, Lever   (Replaces: 7101P230-60)	10			$ 4.29
7	7118P017-60		Screw	10	Appelez-nous	-
7	7401P037-60		Block, Terminal	10	Appelez-nous	-
8	4006D128-45		Riser, Duct Assy.	10	Appelez-nous	-
9	4005F402-51		Cover, Top	10	Appelez-nous	-
10	3604F200-51		Shield, Air	10	Appelez-nous	-
11	3807F452-51		Support, Duct	10	Appelez-nous	-
11	4006D101-45		Duct Assy.	10	Appelez-nous	-
12	3804F129-51		Retainer, Top Insulation	10	Appelez-nous	-
12	74001793		Retainer, Top Insulation	11	Appelez-nous	-
13	4001F083-51		Housing, Fan	10	Appelez-nous	-
14	7427P010-60		Fan Assy.	10	Appelez-nous	-
15	7201P048-60		Gasket, Flue Top	10	Appelez-nous	-
16	4006W117-45		Box, Flue	10	Appelez-nous	-
17	W11233072		Screw   (Replaces: 7101P290-60)	10		Immediately	$ 12.62
18	4804F028-60		Insulation, Latch Assy.	10	Appelez-nous	-
18	8002P027-60		Latch Assy.	10	Appelez-nous	-
19	7112P112-60		Clip, Latch Lever	10			$ 4.83
19	W10124350		Not Required Part Or See Note	17	Appelez-nous	-
19	7701P153-60		Handle, Door Latch (wht)	10	Appelez-nous	-
20	7402P043-60		Cord, Power	10	Appelez-nous	-
