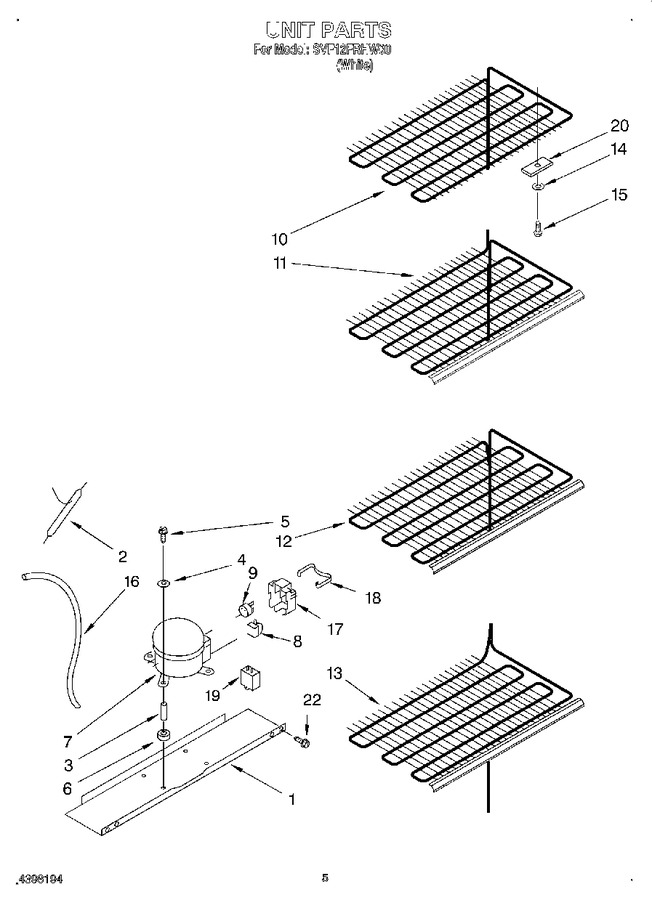

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4357056		Compressor Mounting Pan		Appelez-nous	-
2	4001		Drier   (Replaces: 4356675)			Immediately	$ 9.64
3	4356846		Compressor Grommet Sleeve				$ 12.86
4	4356847		Washer		Appelez-nous	-
5	4356852		Compressor Mounting Screw				$ 6.57
6	4356335		Compressor Grommet		Appelez-nous	-
7	W10309989		Compressor (includes Items 6, 8 & 9)   (Replaces: 4390574)			Immediately	$ 591.26
8	4356730		Relay				$ 55.97
9	2183409		Overload   (Replaces: 4390576)				$ 111.81
10	4357228		Evaporator Top		Appelez-nous	-
11	4357229		Evaporator Shelf		Appelez-nous	-
12	4357230		Evaporator Shelf		Appelez-nous	-
13	4357231		Evaporator Shelf		Appelez-nous	-
14	4357057		Washer		Appelez-nous	-
15	WP3-24004-109		Evaporator, Mounting Screw   (Replaces: 4357223)				$ 7.25
16	4356999		Heat Exchanger		Appelez-nous	-
17	4390603		Cover		Appelez-nous	-
18	4390604		Clip		Appelez-nous	-
19	WPW10662129		Capacitor   (Replaces: 4357094)			Immediately	$ 52.97
20	4356854		Clamp		Appelez-nous	-
22	WP3-24838-048		Screw   (Replaces: 4356820)				$ 7.00

    View Diagram in Separate Window       Print Part List
