SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Liner


03 - Unit

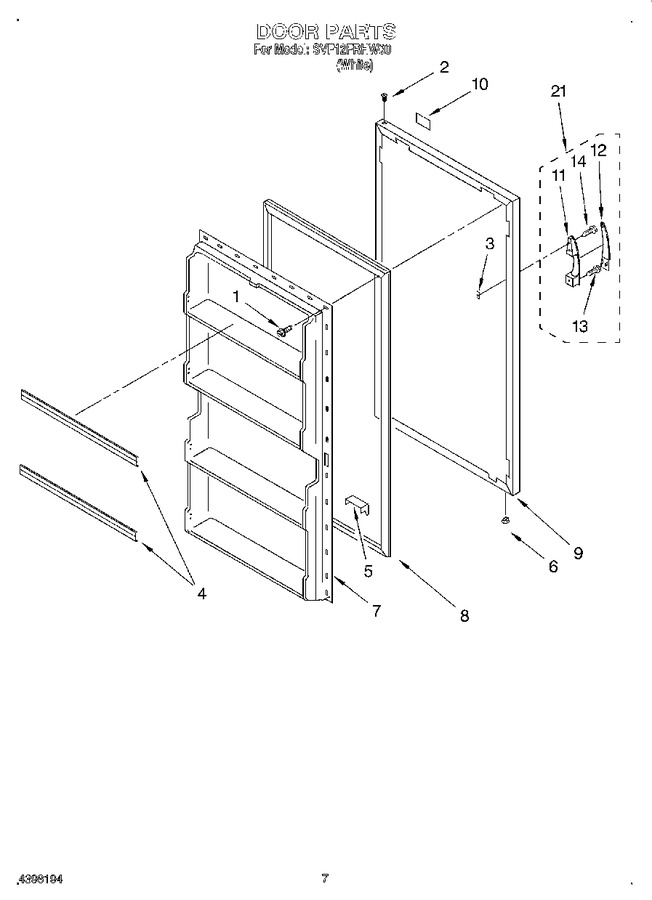

04 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4390598		Screw   (Replaces: 4357290)				$ 18.89
2	4356811		Hinge, Bushing		Appelez-nous	-
3	4356812		Anchor, Screw		Appelez-nous	-
4	4390606		Door Shelf Trim (4)		Appelez-nous	-
5	4356893		Foam Block		Appelez-nous	-
6	3-24898-007		Vent Plug   (Replaces: 4356894)				$ 9.72
7	4390617		Interior Door		Appelez-nous	-
8	4357136		Door Gasket				$ 173.12
9	4357134		Exterior Door		Appelez-nous	-
10	4356727		Nameplate		Appelez-nous	-
11	4357035		Handle		Appelez-nous	-
12	4357036		Insert, Handle		Appelez-nous	-
13	W10709795		Screw (long)   (Replaces: 4390511)				$ 11.82
14	WP3-24004-109		Screw (short)   (Replaces: 4357223)				$ 7.25
21	4357137		Handle Assembly (includes Items 11, 12, 13 & 14)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
