SELECT A DIAGRAM
01 - Body

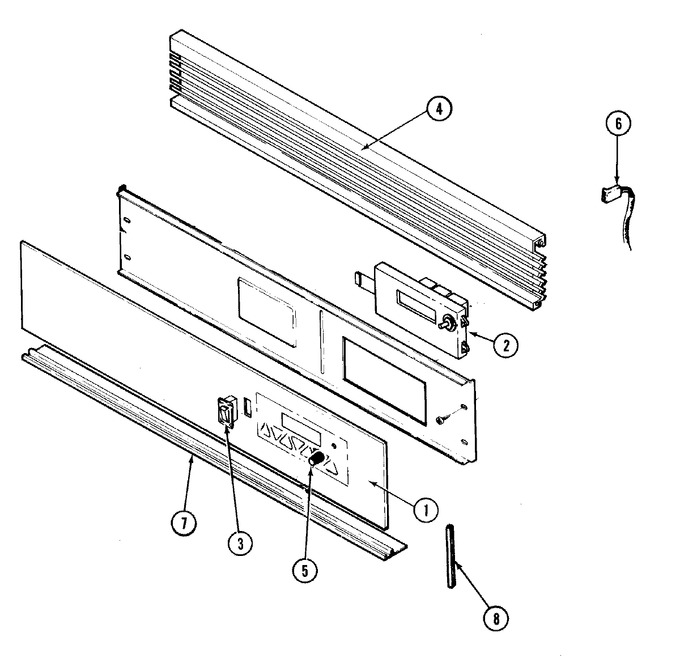

02 - Control Panel
03 - Door
04 - Gas Controls
05 - Internal Controls
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7721P035-60 | Panel, Control | 01 |
|
- | ||||
| 2 | 7601P215-60CP | Clock (Replaces: 7601P215-60) | 01 |
|
- | ||||
| 2 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 01 |
|
$ 6.98 | ||||
| 3 | 7403P067-60 | Switch, Rocker (blk) (Replaces: 7403P102-60) | 01 |
|
$ 91.35 | ||||
| 3 | 7003P048-60 | Shield, Clock Insulation | 01 |
|
- | ||||
| 4 | 7756P086-60 | Extrusion, Vent Grill (blk) | 01 |
|
- | ||||
| 4 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 01 |
|
$ 15.94 | ||||
| 5 | WP7711P492-60 | Knob, Clock (blk) (Replaces: 7711P475-60) | 01 |
|
$ 12.13 | ||||
| 6 | 5170P136-60 | Harness, Sensor Probe | 01 |
|
- | ||||
| 7 | 7756P077-60 | Extrusion, Lower (blk) | 01 |
|
- | ||||
| 8 | 8113P022-60 | Manual, Use & Care | 01 |
|
- | ||||
| 8 | 7720P151-60 | Trim, Control Panel (blk) | 01 |
|
- |
