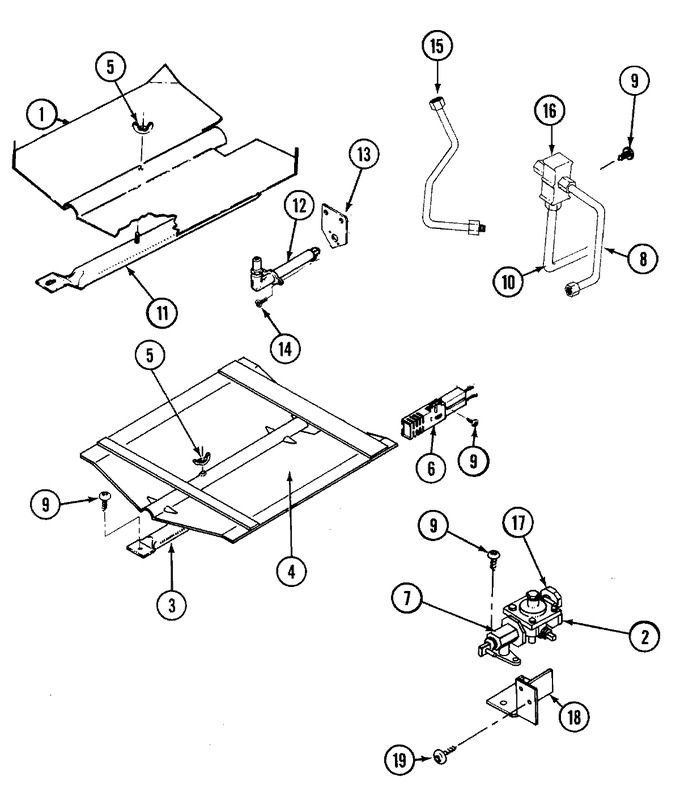

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door
04 - Gas Controls
05 - Internal Controls
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F217-45 | Baffle, Broil | 01 |
|
- | ||||
| 2 | 7510P047-60 | Regulator, Pressure | 01 |
|
- | ||||
| 3 | 3403D034-45 | Burner, Bake | 01 |
|
- | ||||
| 4 | 3601F234-45 | Baffle, Oven Bottom | 01 |
|
- | ||||
| 5 | 7103P030-60 | Nut, Wing | 01 |
|
$ 6.37 | ||||
| 6 | 4005F421-45 | Cover,igniter | 01 |
|
- | ||||
| 6 | W11233072 | Screw (Replaces: 7101P290-60) | 01 |
|
Immediately | $ 12.62 | |||
| 6 | 12400035 | Igniter, Oven (Replaces: 7432P076-60) | 01 |
|
Immediately | $ 60.44 | |||
| 7 | 7501P041-60 | Valve, Shut Off | 01 |
|
- | ||||
| 8 | 7507P097-60 | Tubing, Bake | 01 |
|
- | ||||
| 9 | WP3351614 | Screw (Replaces: 7101P328-60) | 01 |
|
Immediately | $ 6.26 | |||
| 10 | 3414F106-44 | Tubing, Regulator (3/8``) | 01 |
|
- | ||||
| 11 | 3403D024-45 | Burner, Broil | 01 |
|
- | ||||
| 12 | 7507P067-60 | Fitting, Broil Burner | 01 |
|
- | ||||
| 13 | 3605F186-45 | Plate, Fitting | 01 |
|
- | ||||
| 14 | 7101P250-60 | Screw, Trim | 01 |
|
- | ||||
| 15 | 3414F107-44 | Tubing, Broil (3/8``) | 01 |
|
- | ||||
| 16 | 7501P116-60 | Valve | 01 |
|
- | ||||
| 17 | 1555251 | Nut, Loxit (3/8``) | 01 |
|
- | ||||
| 18 | 3801F290-51 | Bracket, Regulator | 01 |
|
- | ||||
| 19 | 7101P085-60 | Screw | 01 |
|
- |
