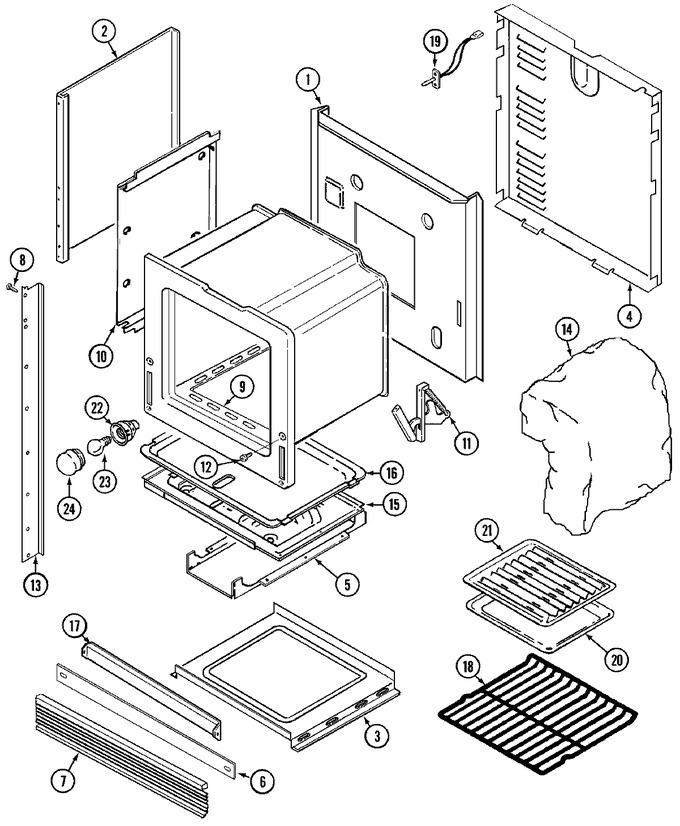

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8008P021-60		Grommet, Snap	10	Appelez-nous	-
1	4002F171-51		Back, Main	10	Appelez-nous	-
2	2618F083-51		Panel, Body	10	Appelez-nous	-
3	4011F190-51		Bottom, Main	10	Appelez-nous	-
4	4005F405-51		Cover, Back	10	Appelez-nous	-
5	3807F429-51		Support, Cavity	10	Appelez-nous	-
6	4005F354-70		Strip, Bottom (blk)	10	Appelez-nous	-
7	7756P097-60		Extrusion, Vent (btm-blk)	10	Appelez-nous	-
8	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	10			$ 15.94
9	5504A003-21		Bottom, Oven	10	Appelez-nous	-
10	3804F108-51		Retainer, Insulation (side)	10	Appelez-nous	-
11	7106P050-60		Hinge----na	10	Appelez-nous	-
12	WP4159193		Screw   (Replaces: 7101P115-60)	10			$ 4.29
13	7750P096-60		Extrusion, Side (rt-blk)	10	Appelez-nous	-
13	7750P095-60		Extrusion, Side (lt-blk)	10	Appelez-nous	-
14	4804F029-60		Insulation, Wrap	10	Appelez-nous	-
14	4804F030-60		Insulation, Back & Bottom	10	Appelez-nous	-
15	3804F112-51		Retainer, Insulation	10	Appelez-nous	-
15	74001793		Retainer, Top Insulation	11	Appelez-nous	-
16	3401F024-45		Pan, Bake Burner	10	Appelez-nous	-
17	74001219		Baffle, Oven Front	15	Appelez-nous	-
17	3601F208-45		Baffle, Oven Front	10	Appelez-nous	-
18	WPW10282492		Rack   (Replaces: 7801P040-60)	10		Immediately	$ 65.15
19	12001655		Probe, Oven Sensor   (Replaces: 7430P009-60)	10		Immediately	$ 41.01
20	Y3401F02019		Pan, Broil	10	Appelez-nous	-
21	Y3413F01619		Insert, Broil Pan	10	Appelez-nous	-
22	WP7407P182-60		Receptacle, Bulb   (Replaces: 7407P088-60)	10		Immediately	$ 66.10
23	40A15		Bulb, Oven   (Replaces: 7407P095-60)	10		Immediately	$ 1.98
24	WP9781049		Cover, Bulb   (Replaces: 7724P047-60)	10		Immediately	$ 71.93
