01 - Body
02 - Control Panel
03 - Door
04 - Door (ser. Pre. 14)
05 - Gas Controls
06 - Internal Controls
SELECT A DIAGRAM
New Model Search:

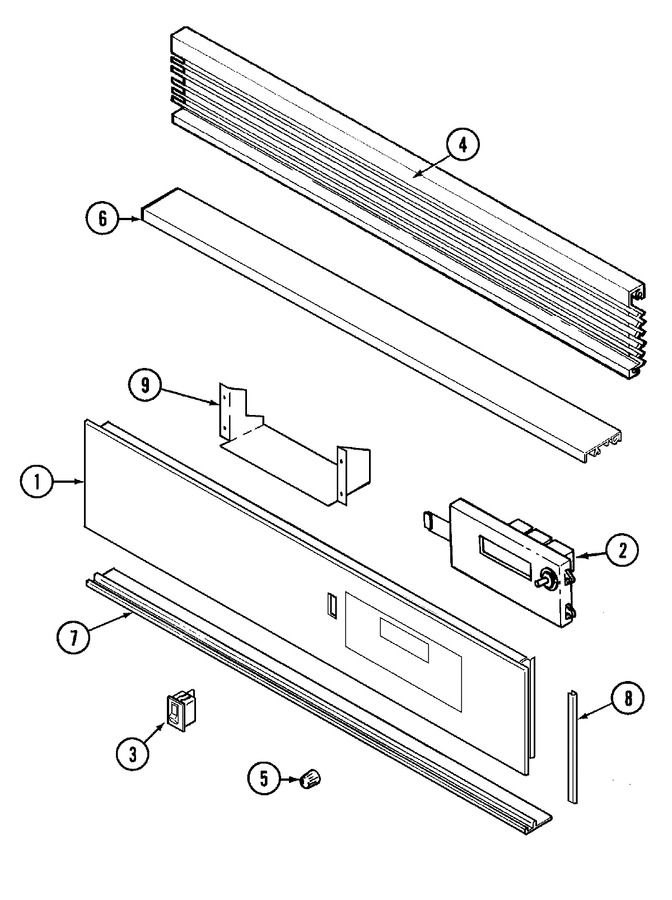

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7721P047-60 | Panel, Control (blk) | 10 |
|
- | ||||
| 2 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 10 |
|
$ 6.98 | ||||
| 2 | 7601P232-60 | Clock | 10 |
|
- | ||||
| 3 | 7403P067-60 | Switch, Rocker (blk) (Replaces: 7403P102-60) | 10 |
|
$ 91.35 | ||||
| 4 | 7756P086-60 | Extrusion, Vent Grill (blk) | 10 |
|
- | ||||
| 5 | WP7711P492-60 | Knob, Clock (blk) (Replaces: 7711P492-60) | 10 |
|
$ 12.13 | ||||
| 6 | 7756P097-60 | Extrusion, Vent (btm-blk) | 10 |
|
- | ||||
| 6 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 10 |
|
$ 15.94 | ||||
| 7 | 7756P077-60 | Extrusion, Lower (blk) | 10 |
|
- | ||||
| 8 | 7720P151-60 | Trim, Control Panel (blk) | 10 |
|
- | ||||
| 9 | 7003P056-60 | Insulation, Fiberboard | 10 |
|
- | ||||
| 9 | 5170P207-60 | Harness, Sensor/lock | 10 |
|
- | ||||
| 9 | 5170D213-60 | Harness, Main | 10 |
|
- | ||||
| 10 | 8113P022-60 | Manual, Use & Care | 10 |
|
- | ||||
| 11 | 16000329 | Guide, Quick Ref. - Magic Chef | 10 |
|
- |
