SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts

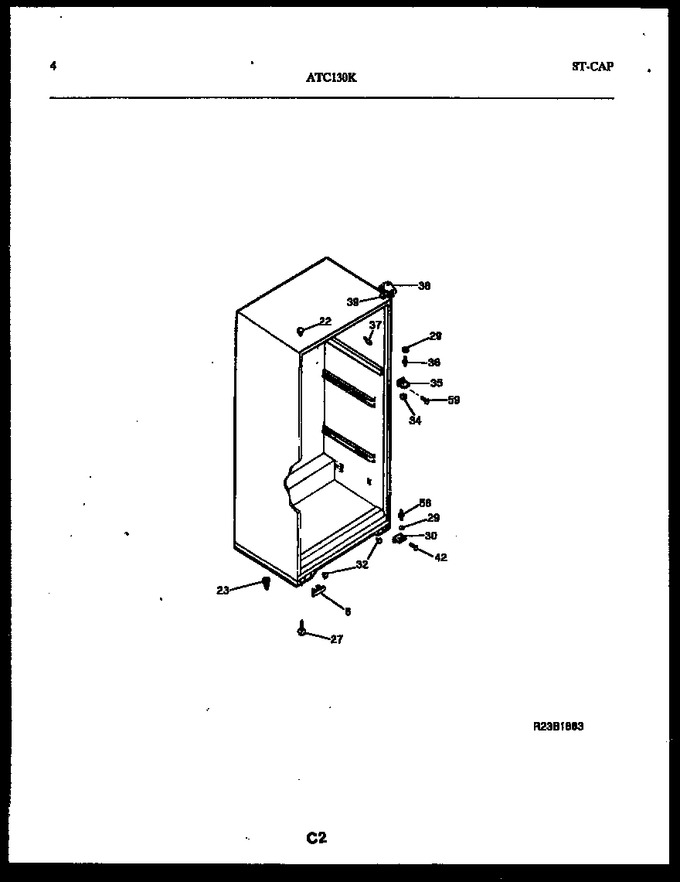

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	3206135		Cover-lwr Hng Screw		Appelez-nous	-
22	5303001389		Plug-button, Almond, Upr Hinge Holes		Appelez-nous	-
23	5303211514		Tube-drain		Appelez-nous	-
27	3206141		Screw-leveling				$ 11.50
29	5308000007		Washer, .34 X .62 X .05, Nylon		Appelez-nous	-
30	3206136		Bracket-lower Hinge		Appelez-nous	-
32	3206142		Plug-button, Cabinet Base, (2)		Appelez-nous	-
34	5308000186		Washer, .34 X .62 X .10, Nylon			Immediately	$ 6.02
35	5303001369		Bracket-ctr Hinge		Appelez-nous	-
36	5308000184		Pin-center Hinge				$ 8.87
37	5303202340		Trim, Cabinet Corner, Almond, (4)		Appelez-nous	-
38	3206100		Bracket-upper Hinge		Appelez-nous	-
39	5303001037		Shim - Upper Hinge				$ 12.39
42	3206143		Screw-lwr Hinge Mtg, Hex Washer Hd, 1/4-20 X 5/8, (4)		Appelez-nous	-
56	5303001321		Pin-lower Hinge				$ 17.25
59	3206134		Screw-hinge/mullion, Acorn Hx Wsh Hd, 10-24(23) X 1		Appelez-nous	-
*58824	5303210622		Pad-rear Base		Appelez-nous	-
38A	241710601		Screw   (Replaces: 5303001479)				$ 13.46
38B	5308012296		Tapping Plate, Upper Hinge, (2) (non-illustrated)				$ 47.44

    View Diagram in Separate Window       Print Part List
