New Model Search:

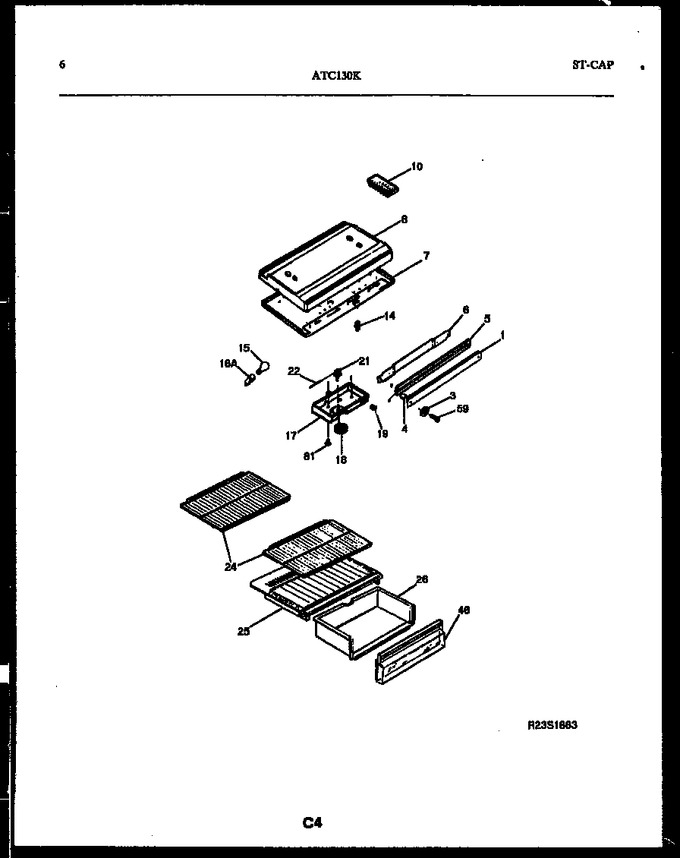

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3206125 | Mullion, Almond |
|
- | |||||
| 3 | 5308003607 | Washer, No. 10 Steel, 7/23 X 7/16 Od |
|
$ 1.00 | |||||
| 4 | 5303200464 | Spacer, Mullion Mtg, (2) |
|
- | |||||
| 5 | 3206120 | Heater-mullion |
|
- | |||||
| 6 | 5308003604 | Strap, Mullion Mtg |
|
- | |||||
| 7 | 5303271490 | Top Panel-refr |
|
- | |||||
| 8 | 5303271492 | Divider - Styrofoam |
|
- | |||||
| 10 | 5303001324 | Tray-ice, Plastic |
|
- | |||||
| 14 | 5309918806 | Switch, Light |
|
Immediately | $ 21.97 | ||||
| 15 | 5303001179 | Light Bulb/lamp |
|
- | |||||
| 17 | 5303211508 | Box-control |
|
- | |||||
| 18 | 5303209251 | Knob-temp Control |
|
- | |||||
| 19 | 3206129 | Switch-energy Saver |
|
- | |||||
| 21 | 5303211506 | Control-temperature |
|
- | |||||
| 22 | 5303916855 | Sleeve-plastic Tube |
|
$ 60.96 | |||||
| 24 | 5303283125 | Shelf-sliding, Refr, (2) |
|
- | |||||
| 25 | 5303270897 | Cover-crisper Pan |
|
$ 275.73 | |||||
| 26 | 5303209937 | Pan-crisper, Full-width |
|
$ 231.16 | |||||
| 46 | 3206106 | Front-crisper Pan, Full Width |
|
- | |||||
| 59 | 3206134 | Screw-hinge/mullion, Acorn Hx Wsh Hd, 10-24(23) X 1 |
|
- | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 16A | 218906802 | Socket-light/lamp (Replaces: 5308000815) |
|
$ 17.72 | |||||
| 17A | 5317655401 | Plug-button, Control Box (non-illustrated) |
|
- | |||||
| 17B | 08016567 | Nut-anchor, Control Box Mtg (non-illustrated) |
|
- | |||||
| 21A | 5303001260 | Screw |
|
$ 6.73 | |||||
| 7A | 5303001380 | Screw |
|
- | |||||
| 8A | 3205266 | Protector-edge (non-illustrated) |
|
$ 80.09 |
