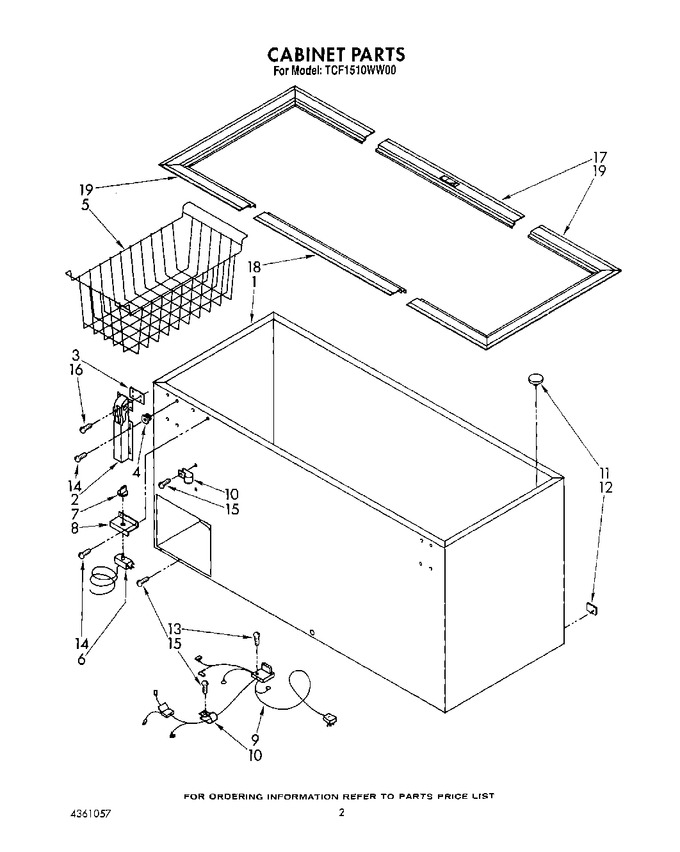

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | 4356490 | Hinge Assembly (Replaces: 4356373) |
|
$ 211.36 | |||||
| 3 | 1-17548-006 | Hinge, Spacer (Replaces: 4356320) |
|
$ 18.64 | |||||
| 4 | 4356321 | Grommet, Plastic |
|
$ 11.72 | |||||
| 5 | 4356322 | Wire Basket |
|
- | |||||
| 6 | 4356323 | Thermostat |
|
- | |||||
| 7 | 4356388 | Thermostat, Knob |
|
- | |||||
| 8 | 4356370 | Thermostat, Control Bracket |
|
- | |||||
| 9 | 4356347 | External, Wiring Harness |
|
- | |||||
| 10 | 488946 | Plastic, Clip (Replaces: 4356328) |
|
$ 18.41 | |||||
| 11 | 4356333 | Drain, Cap |
|
- | |||||
| 12 | 4356334 | Drain, Plug |
|
- | |||||
| 13 | 487980 | Screw |
|
- | |||||
| 14 | WP308685 | Screw (Replaces: 308685) |
|
Immediately | $ 7.08 | ||||
| 15 | WP488787 | Screw (Replaces: 488787) |
|
$ 9.52 | |||||
| 16 | 489181 | Screw |
|
- | |||||
| 17 | 4356362 | Front, Breaker Strip |
|
- | |||||
| 18 | 4356363 | Rear, Breaker Strip |
|
- | |||||
| 19 | 4356315 | End, Breaker Strip (2) |
|
- |
