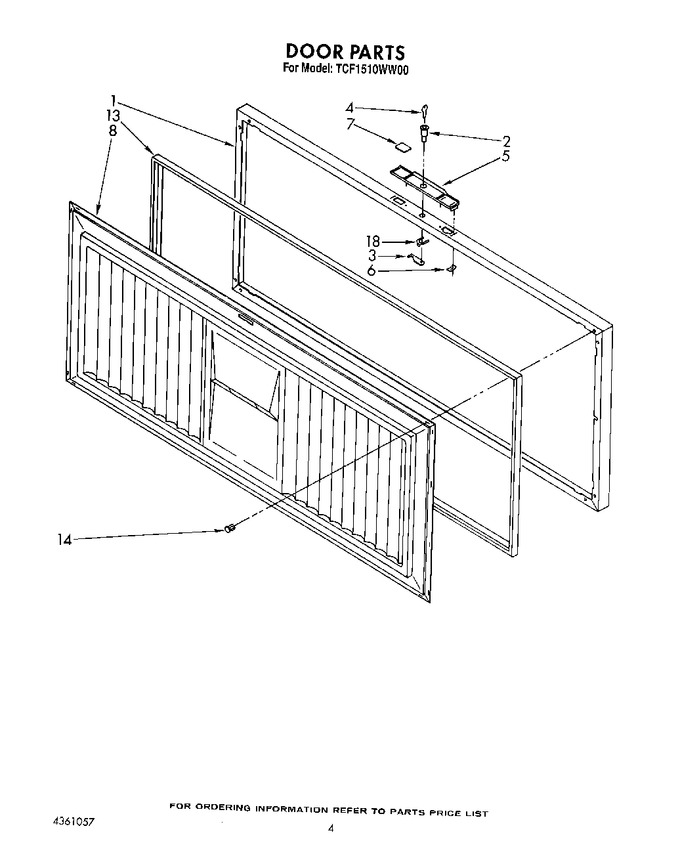

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4356389		Exterior, Door Panel		Appelez-nous	-
2	3-35284-001		Lock   (Replaces: 4356371)				$ 24.42
3	2-35195-002		Hook Bolt, Lock   (Replaces: 4356303)				$ 57.10
4	4356304		Key		Appelez-nous	-
5	4356390		Handle		Appelez-nous	-
6	4356306		Clip, Oblong				$ 7.36
7	4356387		Nameplate		Appelez-nous	-
8	4356361		Interior, Door Panel		Appelez-nous	-
13	4356391		Gasket		Appelez-nous	-
14	4356317		Gasket, Clip		Appelez-nous	-
18	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
18	983465		Clip, Spring		Appelez-nous	-
18	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
18	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	LIT4361057		Parts List		Appelez-nous	-
	LIT4356394		Owner`s Manual		Appelez-nous	-
