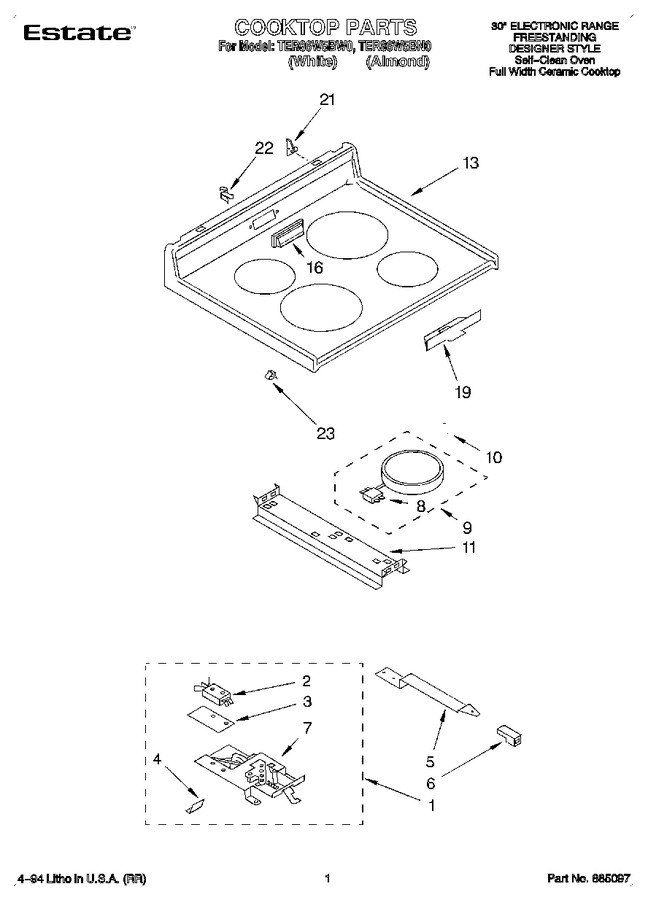

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.07
1	3183322		Latch Asm Complete W/wiring Harness		Appelez-nous	-
2	3182741		Safety Switch		Appelez-nous	-
2	98106		Screw (2)		Appelez-nous	-
3	309245		Insulator, Switch		Appelez-nous	-
4	313035		Shield, Latch Terminal		Appelez-nous	-
4	309258		Screw (2)		Appelez-nous	-
5	309258		Screw (2)		Appelez-nous	-
5	3169081		Handle, Latch		Appelez-nous	-
6	3148684		Knob, Latch		Appelez-nous	-
6	155023		Screw, 8-18 X 1/4			Immediately	$ 7.91
7	3148668		Latch Mechanism		Appelez-nous	-
8	3183974		Limiter, Temp. (200 Mm - (2))		Appelez-nous	-
8	3183972		Limiter, Temp. (200 Mm - (2))		Appelez-nous	-
9	3183648		Element, Surface (includes No.8) (200 Mm -(2))		Appelez-nous	-
9	3183647		Element, Surface (includes No.8) (200 Mm - (2))		Appelez-nous	-
10	3149191		Spring (8)				$ 9.45
11	98520		Screw (4)		Appelez-nous	-
11	3183087		Bracket, Element Support		Appelez-nous	-
13	3184123		Cooktop (almond Mdl.)		Appelez-nous	-
13	WP308685		Cooktop (screw (2))   (Replaces: 3367670)			Immediately	$ 7.08
13	3184122		Cooktop (white)		Appelez-nous	-
16	3149011		Cover, Vent (white)		Appelez-nous	-
16	3149012		Cover, Vent (almond)		Appelez-nous	-
19	3183510		Shield, Probe		Appelez-nous	-
21	3169294		Bracket, Cooktop (right)		Appelez-nous	-
21	3169295		Bracket, Cooktop (left)		Appelez-nous	-
22	3149190		Clip, Mounting (2) (vent Cover)		Appelez-nous	-
23	311311		Clip, Wire		Appelez-nous	-
	LIT677973		Manual, Range		Appelez-nous	-
	LIT3169416		Wiring Diagram		Appelez-nous	-
	LIT3187695		Use & Care Guide		Appelez-nous	-
	LIT3187321		Instructions, Installation		Appelez-nous	-
	LIT3150400		Installation Instr (templet)		Appelez-nous	-
