SELECT A DIAGRAM

01 - Cooktop, Literature


02 - Door And Drawer


03 - Unit


04 - Control Panel


05 - Oven


06 - Wiring Harness, Optional

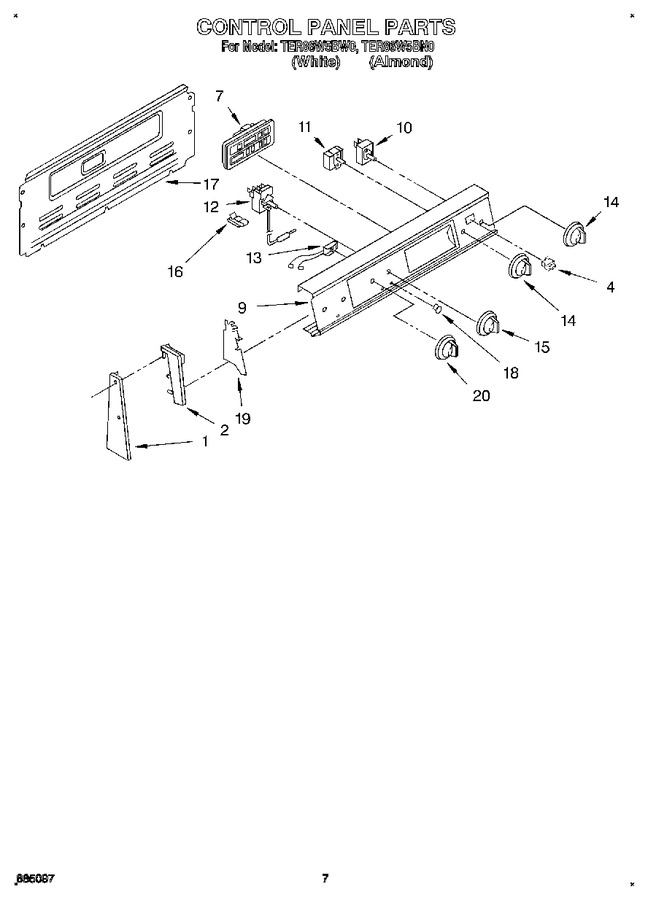

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3183090		End Trim R.h.		Appelez-nous	-
1	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
1	3183091		End Trim L.h.		Appelez-nous	-
2	3150442		End Cap L.h.		Appelez-nous	-
2	254225		Screw, 8bt X 1/4 (4)		Appelez-nous	-
2	3150441		End Cap R.h.		Appelez-nous	-
4	3182717		Switch, Rocker		Appelez-nous	-
7	3183188		Timer, Digital		Appelez-nous	-
7	WP965173		Screw (2)   (Replaces: 246132)			Immediately	$ 9.65
8	3188147		Panel, Control		Appelez-nous	-
8	312604		Screw 8-18 X 5/8 (4)		Appelez-nous	-
10	WP3149400		Switch, Infinite (8`` (2))   (Replaces: 3148954)			Immediately	$ 81.46
10	308119		Switch, Infinite (screw, 8-32 X 1/4 (8))		Appelez-nous	-
10	5500-287		Switch, Infinite (6`` (2))   (Replaces: 3148951)			Immediately	$ 47.15
11	WP965173		Screw (2)   (Replaces: 3150344)			Immediately	$ 9.65
11	3148419		Switch, Selector (5 Position)		Appelez-nous	-
12	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 6.84
12	3185625		Thermostat, 0ven		Appelez-nous	-
13	314031		Light, Indicator (oven, (1))				$ 62.88
13	3148719		Light, Indicator (light, (1))		Appelez-nous	-
13	3183695		Light, Indicator (surface Unit (1))		Appelez-nous	-
13	3169439		Light, Indicator (hot Surface (1))		Appelez-nous	-
14	3183118		Knob, Control (4) (infinite Switch)				$ 23.04
15	3183105		Knob, Control (thermostat)		Appelez-nous	-
16	313570		Tube Clip		Appelez-nous	-
17	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 7.07
17	3187332		Rear Cover Control Panel		Appelez-nous	-
18	313101		Lens, Amber (3)		Appelez-nous	-
19	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 9.65
19	313608		Shield, Glass (2)		Appelez-nous	-
20	3183115		Knob, Control (selector)				$ 23.60

    View Diagram in Separate Window       Print Part List
