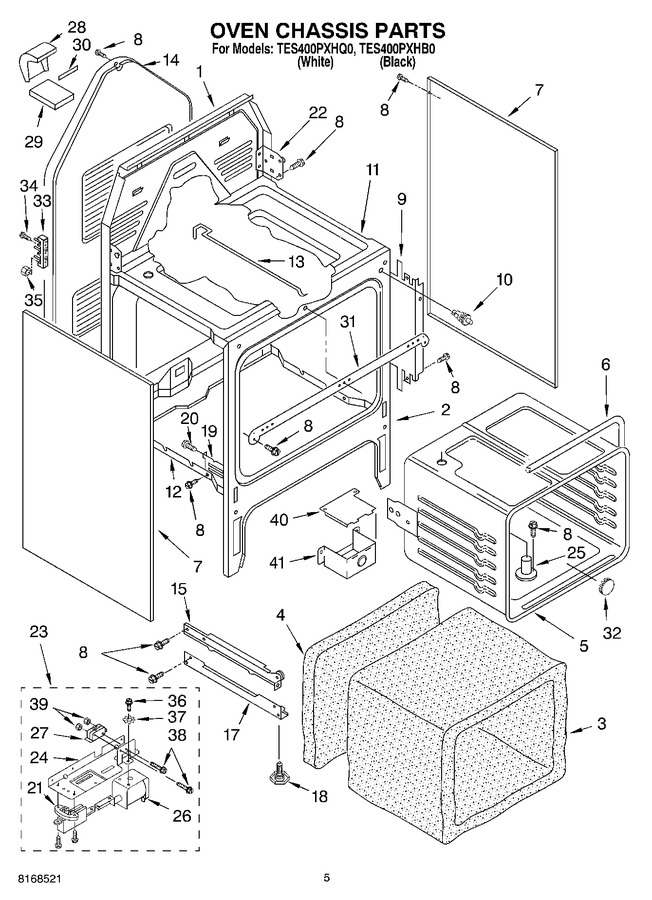

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9750146		Main Chassis, Back		Appelez-nous	-
2	9750514GM		Chassis, Front		Appelez-nous	-
3	9754000		Insulation, Wrap		Appelez-nous	-
4	9754011		Insulation, Rear		Appelez-nous	-
5	9754249GM		Oven Liner		Appelez-nous	-
6	9755179		Gasket, Oven		Appelez-nous	-
7	9781907PW		Oven, Side Panel (white)		Appelez-nous	-
7	9781907PB		Oven, Side Panel (black)		Appelez-nous	-
8	9780265		Screw, 10-16 X 3/8		Appelez-nous	-
9	9780664		Shield, Insulation		Appelez-nous	-
10	808136601		Door Switch (oven Light)   (Replaces: 9752798)			Immediately	$ 44.04
11	9750478		Burner Box		Appelez-nous	-
12	9750142		Oven Bottom		Appelez-nous	-
13	9750523		Rod, Lock		Appelez-nous	-
14	9750150		Panel, Rear		Appelez-nous	-
15	9750224		Rail, Drawer (right)		Appelez-nous	-
15	9750223		Drawer Rail, Left		Appelez-nous	-
17	9750147		Bottom Rail (2)		Appelez-nous	-
18	WPW10058460		Foot, (4)   (Replaces: 312701)			Immediately	$ 7.07
19	9782005		Receiver, Hinge (r Or L)		Appelez-nous	-
20	9780272		Screw, 10-16 X 1/2		Appelez-nous	-
21	9752462		Single Position Device (not Serviced)		Appelez-nous	-
22	9750258		Hinge, Cktp.-left		Appelez-nous	-
22	9750416		Hinge, Cktp.-right		Appelez-nous	-
23	9752404		Oven Lock Assembly		Appelez-nous	-
24	9750526		Bracket, Lock		Appelez-nous	-
25	9753091		Vent Tube		Appelez-nous	-
26	9752409		Solenoid		Appelez-nous	-
27	9750965		Switch, Interlock				$ 72.00
28	9750394		Back, Vent		Appelez-nous	-
29	9750393		Cover, Vent		Appelez-nous	-
30	9750767		Gasket, Vent		Appelez-nous	-
31	9780585		Guard, Wire				$ 35.21
32	9780578		Plug, Button		Appelez-nous	-
33	WP8203546		Block, Terminal   (Replaces: 258076)			Immediately	$ 27.12
34	98884		Screw, 10-16 X 1		Appelez-nous	-
35	WP112432		Nut, No.10-32 Hex   (Replaces: 112432)				$ 7.16
36	422222		Screw,10-32 X 5/16		Appelez-nous	-
37	424238		Washer, 10-32		Appelez-nous	-
38	9750887		Screw, 4-40 X 1		Appelez-nous	-
39	9750888		Nut		Appelez-nous	-
40	9752344		Box, Terminal		Appelez-nous	-
41	9752345		Cover, Terminal Box		Appelez-nous	-
