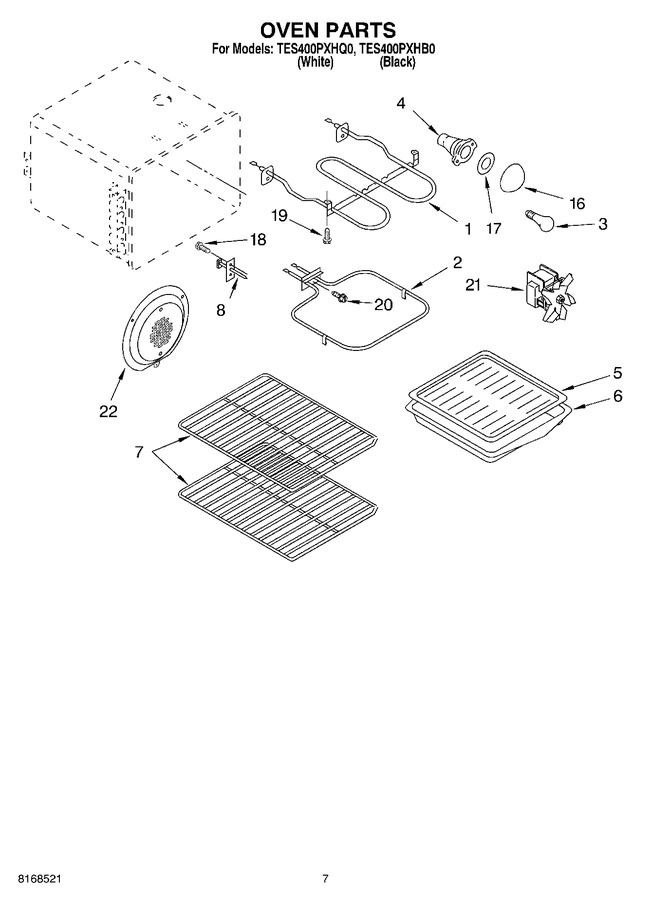

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9780993 | Element, Broil |
|
- | |||||
| 2 | UB413 | Element, Bake (Replaces: 9750213) |
|
Immediately | $ 47.24 | ||||
| 3 | 40A15 | Bulb, Light (Replaces: 8935) |
|
Immediately | $ 1.98 | ||||
| 4 | W11594027 | Socket, Light (Replaces: 9781050) |
|
Immediately | $ 78.31 | ||||
| 5 | 4396923 | Grill, Broiler (Replaces: 420104GM) |
|
Immediately | $ 52.04 | ||||
| 6 | 4396923 | Pan, Broiler (Replaces: 420101GM) |
|
Immediately | $ 52.04 | ||||
| 7 | 9750823 | Rack, Convection |
|
- | |||||
| 8 | 8053344 | Switch, Safety |
|
$ 58.13 | |||||
| 16 | WP9781049 | Lens, Light (Replaces: 9781049) |
|
Immediately | $ 71.93 | ||||
| 17 | WP3184533 | Gasket, Len`s (Replaces: 3184533) |
|
Immediately | $ 7.73 | ||||
| 18 | 9780265 | Screw, 10-16 X 3/8 |
|
- | |||||
| 19 | 9781509 | Screw, 8-32 X 3/8 |
|
- | |||||
| 20 | 340184 | Screw, 10-16 X 1.5 |
|
$ 12.10 | |||||
| 21 | 9781543 | Fan Assembly |
|
$ 142.09 | |||||
| 22 | 313660 | Clip, Wire |
|
- | |||||
| 22 | WP681414 | Screw, Grounding (Replaces: 690989) |
|
Immediately | $ 7.07 | ||||
| 22 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 22 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | |||||
| 22 | 9754079 | Harness, Wire (main) |
|
- | |||||
| 22 | 9781933 | Harness, Wire (cooktop Ceran) |
|
- | |||||
| 22 | 9752612 | Harness, Wire (door Switch) |
|
- | |||||
| 22 | 3169573 | Strap, Ground |
|
- | |||||
| 22 | WPW10339879 | Wire Tie (Replaces: 20082084) |
|
$ 7.11 | |||||
| 22 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 22 | 9751904G | Baffle, Convection |
|
- | |||||
| 22 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 22 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 22 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 22 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 22 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 22 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 22 | 242829 | Wire, Red 12 Ga. 150~c |
|
- | |||||
| 22 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 22 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 22 | 242826 | Wire, White 14 Ga. 150~c |
|
- | |||||
| 22 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 22 | 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | |||||
| 22 | 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 44.36 | |||||
| 22 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | ||||
| 22 | 285006 | Paint, Spray 13 Oz. (black) |
|
Immediately | $ 51.34 | ||||
| 22 | 350942 | Primer (white) (Replaces: 206922) |
|
$ 80.69 | |||||
| 22 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 22 | 978883 | Almond (uncut) |
|
- | |||||
| 22 | 799832 | Kit. Porcelain Repair (white) |
|
- | |||||
| 22 | 8212471 | Touch-up Self-clean(1/2 Pt) (Replaces: 242756) |
|
Immediately | $ 74.76 | ||||
| 22 | 261582 | Grease |
|
- | |||||
| 22 | 9781096 | Cleaner, Cream |
|
- | |||||
| 22 | 9752848 | Anti-tip Kit |
|
- | |||||
| 22 | WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 49.92 | ||||
| 22 | WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 49.92 | ||||
| 22 | 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | |||||
| 22 | 9752771 | Harness, Wire (control) |
|
- | |||||
| 22 | 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 46.30 |
