SELECT A DIAGRAM
01 - Cooktop Parts
02 - Backguard Parts
03 - Manifold Parts
04 - Chassis Parts

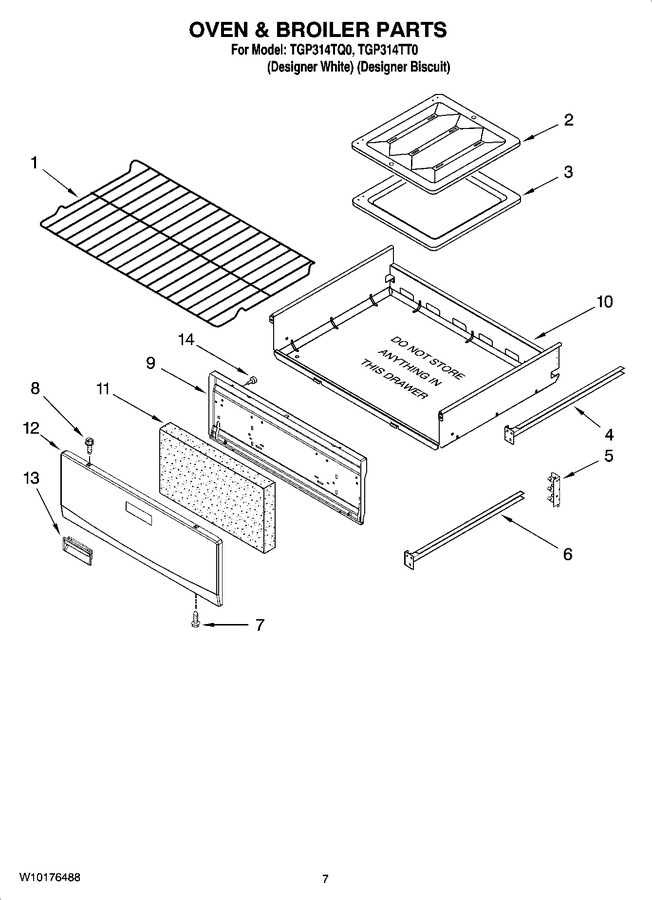

05 - Oven & Broiler Parts
06 - Door Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 98014136 | Rack, Oven (2) |
|
- | |||||
| 2 | WP98003480 | Grill, Broiler (Replaces: 98003480) |
|
$ 89.69 | |||||
| 3 | WP98016005 | Pan, Broiler (Replaces: 98016005) |
|
$ 77.97 | |||||
| 4 | WPW10206639 | Guide, Fixed (right) (Replaces: 98005209) |
|
$ 14.40 | |||||
| 4 | 98004994 | Guide, Fixed (left) |
|
- | |||||
| 5 | 98016666 | Support, Tray (right (2)) |
|
- | |||||
| 5 | 98016664 | Support, Tray (left (2)) |
|
- | |||||
| 6 | WPW10206641 | Guide, Mobile (right) (Replaces: 98004954) |
|
$ 14.40 | |||||
| 6 | W10206642 | Guide, Mobile (left) (Replaces: 98004995) |
|
$ 19.14 | |||||
| 7 | WP3400805 | Screw (2) (Replaces: 98004219) |
|
$ 6.47 | |||||
| 8 | 98008169 | Screw (biscuit) |
|
- | |||||
| 8 | 3196166 | Screw, White (Replaces: 98006727) |
|
$ 6.31 | |||||
| 9 | 98017076 | Liner, Door |
|
- | |||||
| 10 | 98017784 | Drawer, Broiler |
|
- | |||||
| 11 | 98015234 | Insulation, Door |
|
- | |||||
| 12 | 98009342 | Panel, Door (white) |
|
- | |||||
| 12 | 98009341 | Panel, Door (biscuit) |
|
- | |||||
| 13 | WP3405184 | Handle, Brlr Door (white) (Replaces: 98008486) |
|
$ 68.41 | |||||
| 13 | WP3405189 | Handle, Brlr Door (biscuit) (Replaces: 98008488) |
|
$ 78.05 | |||||
| 14 | 98004052 | Bumper, Door (2) |
|
- |
