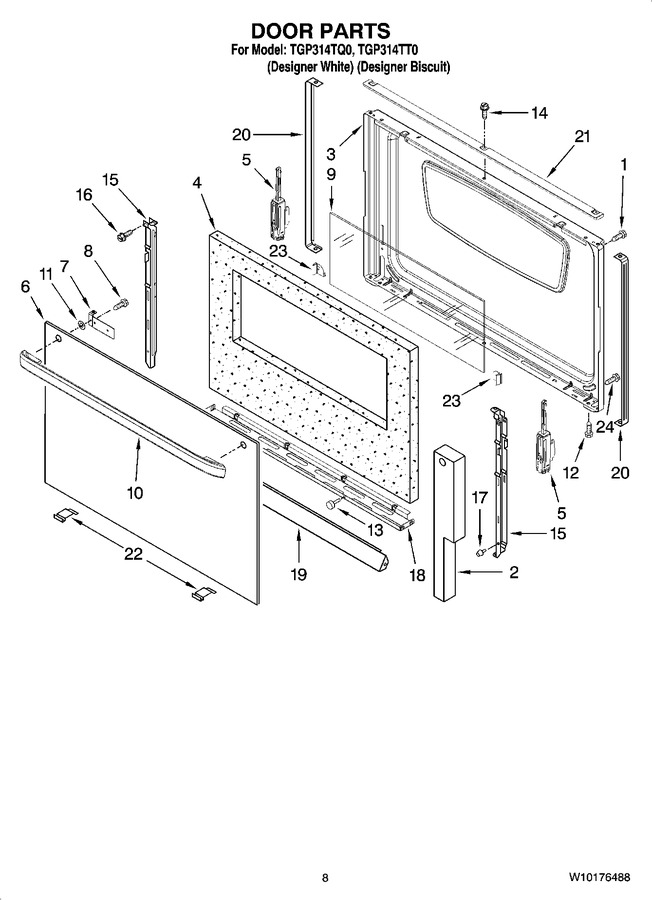

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8533842		Screw   (Replaces: 8533842)				$ 6.26
2	W11688816		Insulation, Side (left)   (Replaces: W10110943)				$ 22.15
2	W10110944		Insulation, Side (right)				$ 60.17
3	W10146207		Liner, Door		Appelez-nous	-
4	W10137238		Insulation, Door		Appelez-nous	-
5	98017875		Hinge, Door (2)				$ 31.85
6	W10143582		Glass, Outer Door (white)		Appelez-nous	-
6	W10143583		Glass, Outer Door (biscuit)				$ 194.83
7	98017948		Support, Glass (2)		Appelez-nous	-
8	98005658		Screw		Appelez-nous	-
9	WP98006801		Glass, Inner (2)   (Replaces: 98006801)				$ 139.86
10	WP98017915W		Handle, Oven Door (white)   (Replaces: 98017915W)				$ 174.96
10	98017915T		Handle, Oven Door (biscuit)		Appelez-nous	-
11	W10153174		Spacer (2)		Appelez-nous	-
12	WP59002061		Screw   (Replaces: 98004993)				$ 6.98
13	98004723		Bumper   (Replaces: 98004979)		Appelez-nous	-
14	WP98008544		Screw (white)   (Replaces: 98008544)				$ 11.89
14	98018224		Screw (biscuit)		Appelez-nous	-
15	98004629		Retainer (left)		Appelez-nous	-
15	98004564		Retainer (right)		Appelez-nous	-
16	WP3400805		Screw   (Replaces: 98004219)				$ 6.47
17	98004227		Bumper				$ 18.94
18	98004938		Retainer, Top		Appelez-nous	-
19	98012904		Retainer, Bottom		Appelez-nous	-
20	98008174		Trim, Side (biscuit)		Appelez-nous	-
20	98006794		Trim, Side (white)		Appelez-nous	-
21	98008175		Trim, Top (biscuit)		Appelez-nous	-
21	98006885		Trim, Top (white)		Appelez-nous	-
22	98010184		Trim (biscuit)		Appelez-nous	-
22	98010185		Trim (white)				$ 41.41
23	98004953		Clip, Glass (right)		Appelez-nous	-
23	98004952		Clip, Glass (left)		Appelez-nous	-
24	W11206744		Screw (2)   (Replaces: 98008699)				$ 12.20
	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350942		Paint, Pressurized Spray (12 Oz.) (primer, White)   (Replaces: 206922)				$ 80.69
	285006		Paint, Pressurized Spray 12 Oz.) (superior Black)			Immediately	$ 51.34
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
	549193		Clamp, Cord   (Replaces: 98005894)				$ 12.05
	98015022		Bushing, Snap (2)		Appelez-nous	-
	WP3391018		Cable Tie-push Mnt   (Replaces: 3391018)				$ 28.66
	98005896		Clip, Wire		Appelez-nous	-
	3196696		Clip, Harness		Appelez-nous	-
	W10154425		Harness, Sensor		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	W10154424		Harness, Main		Appelez-nous	-
	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
	4392899		Paint, Touch-up (1/2oz.) (biscuit)			Immediately	$ 23.81
	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 49.92
	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 49.92
	261582		Grease		Appelez-nous	-
	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 74.76
	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
	242831		Wire (14 Ga. 200 C Red)				$ 342.23
	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
	98012220		Pin Kit-dr Removal				$ 8.91
	WPW10477747		Anti-tip Kit   (Replaces: 98017833)				$ 19.61
	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
