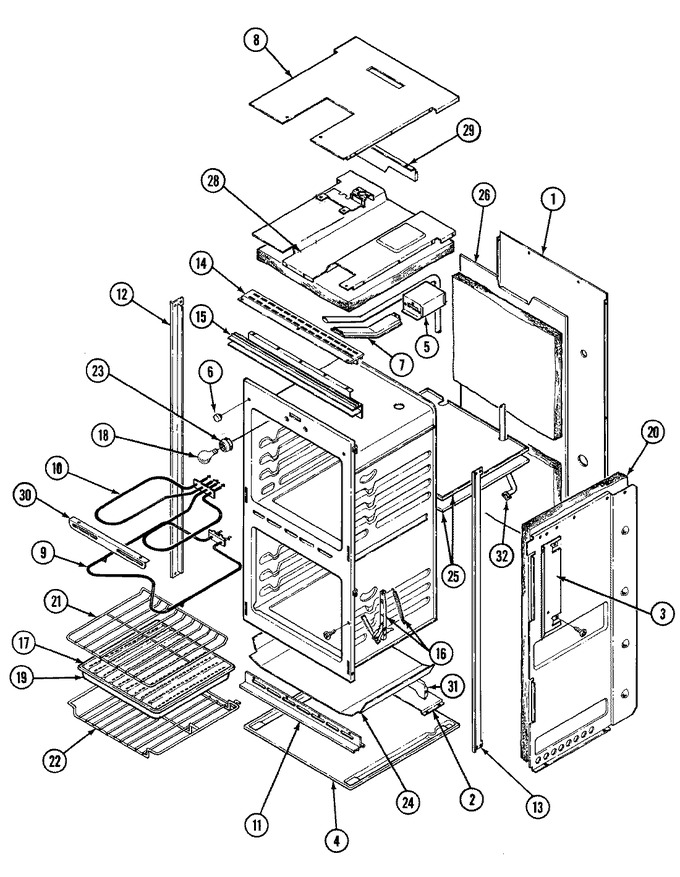

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door (lower)
04 - Door (upper)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F143-51 | Back, Main | 01 |
|
- | ||||
| 2 | 3601F005-80 | Baffle, Base | 01 |
|
- | ||||
| 3 | 3601F130-51 | Baffle, Side | 01 |
|
- | ||||
| 4 | 4003F011-20 | Base, Wall Oven | 01 |
|
- | ||||
| 5 | 4006W046-15 | Box, Vent | 01 |
|
- | ||||
| 6 | 8003P009-60 | Bumper, Door (square) | 01 |
|
- | ||||
| 7 | 3818W002-15 | Channel, Vent Assembly | 01 |
|
- | ||||
| 8 | 4005F202-51 | Cover, Box | 01 |
|
- | ||||
| 9 | WPY04000066 | Element Bake (Replaces: Y04000047) | 01 |
|
Immediately | $ 70.53 | |||
| 10 | WPY04000048 | Element, Broil (Replaces: Y04000048) | 01 |
|
$ 160.58 | ||||
| 11 | 7706P153-60 | Extrusion, Bottom (blk) | 01 |
|
- | ||||
| 12 | 7750P029-60 | Extension, Side (left) | 01 |
|
- | ||||
| 13 | 7750P030-60 | Extension, Side (right) | 01 |
|
- | ||||
| 14 | 7756P009-60 | Extrusion, Top Front (blk) | 01 |
|
- | ||||
| 14 | 7706P199-60 | Extrusion, Top (blk) | 01 |
|
- | ||||
| 15 | 7756P071-60 | Extrusion, Vent | 01 |
|
- | ||||
| 16 | 74001856 | Hinge, Door (Replaces: 74001882) | 11 |
|
$ 123.16 | ||||
| 16 | 7106P036-60 | Hinge | 01 |
|
- | ||||
| 16 | 7106P042-60 | Hinge, Door | 01 |
|
- | ||||
| 16 | 74001984 | Hinge, Door | 11 |
|
$ 126.36 | ||||
| 17 | Y3413F01619 | Insert, Broil Pan | 01 |
|
- | ||||
| 18 | 40A15 | Bulb, Oven (Replaces: 7407P095-60) | 01 |
|
Immediately | $ 1.98 | |||
| 18 | 3604F037-44 | Cover | 01 |
|
$ 30.78 | ||||
| 19 | Y3401F02019 | Pan, Broil | 01 |
|
- | ||||
| 20 | 2618F089-51 | Panel, Side Right | 01 |
|
- | ||||
| 20 | 2618F088-51 | Panel, Side Lf. | 01 |
|
- | ||||
| 21 | 7801P005-60 | Rack | 01 |
|
- | ||||
| 22 | 7801P007-60 | Rack, Offset | 01 |
|
- | ||||
| 23 | 7408P035-60 | Receptacle, Oven Bulb | 01 |
|
$ 30.71 | ||||
| 23 | 7408P034-60 | Receptacle, Oven Light | 01 |
|
- | ||||
| 24 | 3804F104-51 | Retainer, Bottom Insulation | 01 |
|
- | ||||
| 25 | 3804F054-51 | Retainer, Insulation | 01 |
|
- | ||||
| 26 | 3804F007-51 | Retainer, Insul-r | 01 |
|
- | ||||
| 27 | 3804F053-51 | Retainer,top | 01 |
|
- | ||||
| 28 | 3804F053-51 | Retainer,top | 01 |
|
- | ||||
| 29 | 3604F101-80 | Shield, Air | 01 |
|
- | ||||
| 30 | 3807F176-19 | Support, Broil Element | 01 |
|
- | ||||
| 31 | 3807F137-80 | Support | 01 |
|
- | ||||
| 32 | 8026P014-60 | Tube, Oven Vent | 01 |
|
- | ||||
| 35 | 7002P006-60 | Insulation, Bottom | 01 |
|
- | ||||
| 35 | 7002P111-60 | Insulation, Top & Back | 01 |
|
- | ||||
| 35 | 5185A106-60 | Harness, Lower | 01 |
|
- | ||||
| 35 | 7002P107-60 | Insulation, Wrapper | 01 |
|
- |
