SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door (lower)
04 - Door (upper)
New Model Search:

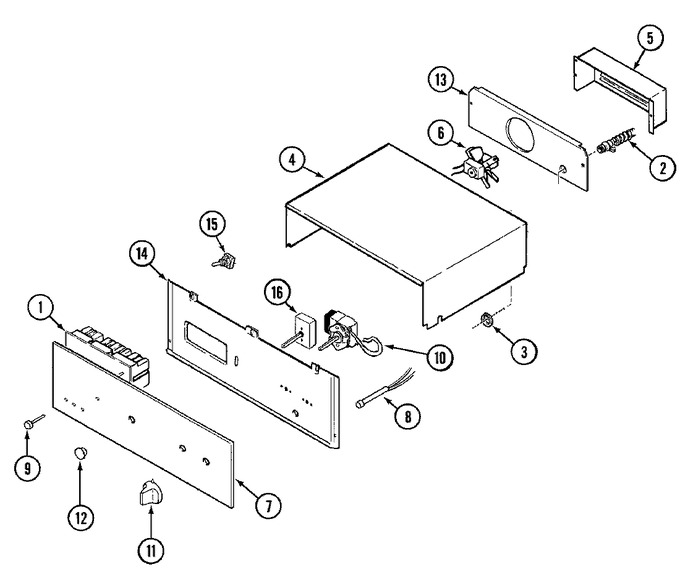

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7601P098-60 | Clock | 01 |
|
- | ||||
| 2 | 7434P005-60 | Conduit, Flexible | 01 |
|
- | ||||
| 3 | 7417P017-60 | Connector, Cable | 01 |
|
$ 9.81 | ||||
| 4 | 4005F150-51 | Cover, Wire | 01 |
|
- | ||||
| 5 | 4005F177-51 | Cover, Fan | 01 |
|
- | ||||
| 6 | 7427P006-60 | Fan Assembly | 01 |
|
- | ||||
| 7 | 04000015 | Glass, Control Pnl | 01 |
|
- | ||||
| 8 | 7407P007-60 | Light, Indicator----na | 01 |
|
- | ||||
| 9 | 7711P007-60 | Knob, Clock | 01 |
|
- | ||||
| 10 | 7404P049-60 | Thermostat, Oven | 01 |
|
$ 113.60 | ||||
| 10 | 7404P042-60 | Thermostat, Lower | 01 |
|
- | ||||
| 11 | 7711P291-60 | Knob (chr) | 01 |
|
- | ||||
| 12 | 7214P007-60 | Sleeve, Switch (blk) | 01 |
|
- | ||||
| 13 | 3605F164-51 | Plate, Conduit | 01 |
|
- | ||||
| 14 | 74001455 | Plate, Switch | 01 |
|
- | ||||
| 15 | 7403P104-60 | Switch, Oven Lamp | 01 |
|
- | ||||
| 16 | 7403P172-60 | Switch, Selector | 01 |
|
- |
