SELECT A DIAGRAM

02 - Cabinet


03 - Liner


04 - Compartment Separator


05 - Shelf

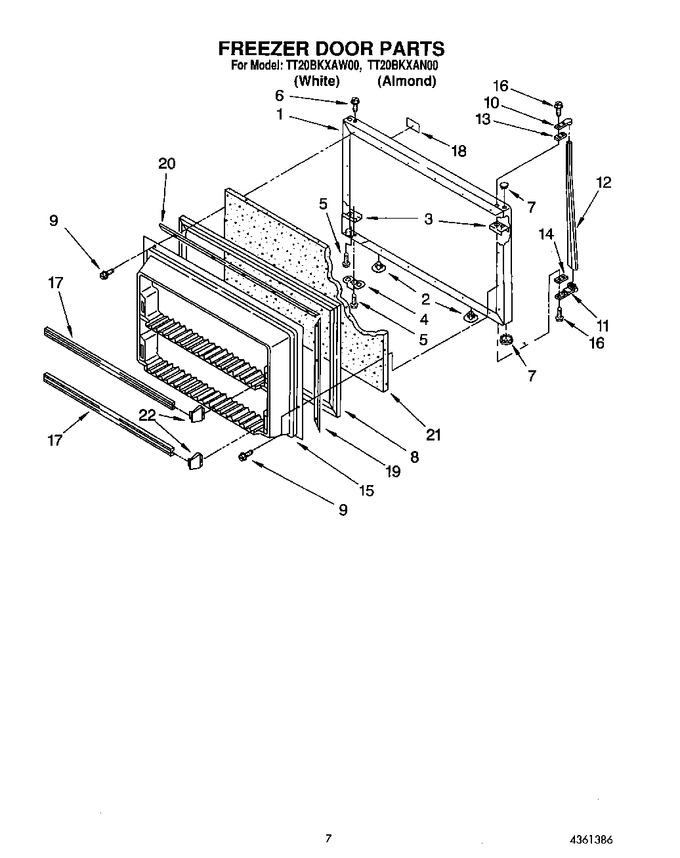

06 - Freezer Door


07 - Unit


08 - Refrigerator Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2159160		Panel, Freezer Door (also Order Item 21) (white)		Appelez-nous	-
1	2159163		Panel, Freezer Door (also Order Item 21) (almond)		Appelez-nous	-
2	989197		Hole Plug (2) (almond)		Appelez-nous	-
2	534927		Hole Plug (2) (white)		Appelez-nous	-
3	943185		Plate, Tap (4)		Appelez-nous	-
4	944035		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 6.98
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 7.15
7	WP2212648		Hole Plug (white)   (Replaces: 844478)				$ 7.02
7	989196		Hole Plug (almond)		Appelez-nous	-
8	2188460A		Door Gasket Magnetic   (Replaces: 1122831)				$ 198.44
9	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 6.90
9	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 7.07
10	WP2191882		Handle End, Top   (Replaces: 943184)				$ 53.80
11	2148503		Handle End		Appelez-nous	-
12	2163266		Handle, Center		Appelez-nous	-
13	943187		Shim, Handle				$ 25.14
14	943188		Spacer, Handle Door				$ 7.80
15	1122575		Interior Door Panel		Appelez-nous	-
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 6.74
17	WP2201061		Trim, Door Shelf (2)   (Replaces: 2163273)				$ 106.56
18	2152532		Nameplate		Appelez-nous	-
19	1122553		Retainer, Gasket		Appelez-nous	-
20	1122552		Retainer, Gasket		Appelez-nous	-
21	876029		Kit, Foam Slab		Appelez-nous	-
22	1106862		Endcap, Trim (4)				$ 5.70

    View Diagram in Separate Window       Print Part List
