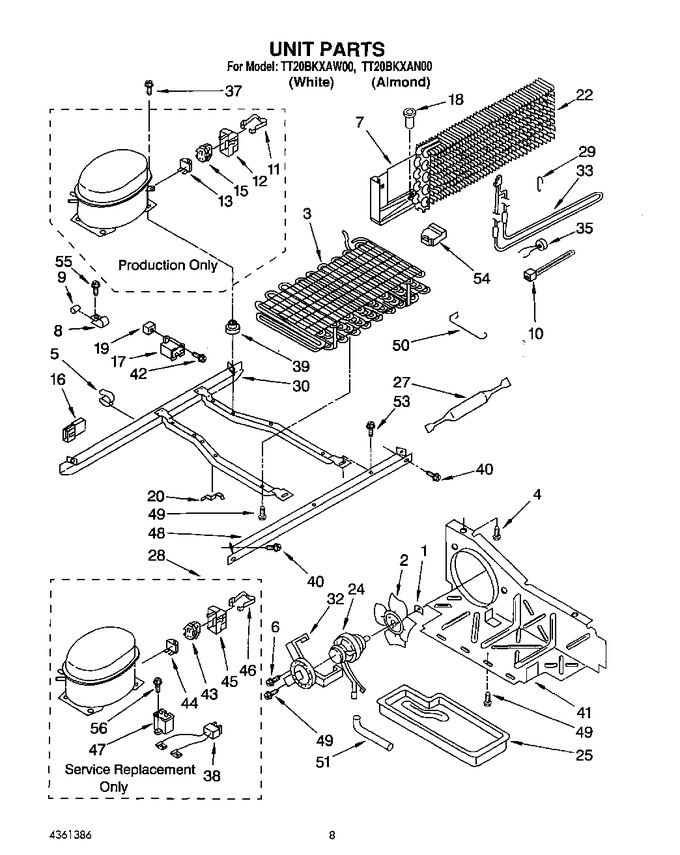

SELECT A DIAGRAM

02 - Cabinet


03 - Liner


04 - Compartment Separator


05 - Shelf


06 - Freezer Door


07 - Unit


08 - Refrigerator Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 7.04
2	851732		Fan, Blade		Appelez-nous	-
3	2154010		Condenser Assembly		Appelez-nous	-
4	WP489464		Screw   (Replaces: 489337)			Immediately	$ 7.05
5	548745		Clip, Wire		Appelez-nous	-
6	681390		Screw   (Replaces: 489019)				$ 11.75
7	2153974		Drain Pan/ Heat Shield		Appelez-nous	-
8	2159720		Tube Clamp		Appelez-nous	-
9	2149670		Dampener		Appelez-nous	-
10	WPW10339879		Strap   (Replaces: 2155774)				$ 7.11
11	938384		Spring, Relay Case		Appelez-nous	-
12	1108115		Case, Relay		Appelez-nous	-
13	4387535		Overload   (Replaces: 2159596)				$ 163.76
15	WP2262181		Relay   (Replaces: 1108143)				$ 110.39
16	1118850		Housing Plug		Appelez-nous	-
17	2154565		Running Capacitor		Appelez-nous	-
18	981629		Drain Fitting		Appelez-nous	-
19	509812		Grommet, Screw		Appelez-nous	-
20	548744		Clip, Unit Cover		Appelez-nous	-
22	2153978		Evaporator		Appelez-nous	-
24	833697		Fan, Motor   (Replaces: 2154735)			Immediately	$ 79.34
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 101.86
27	W10843121		Drier   (Replaces: 2154002)			Immediately	$ 47.31
28	W10439652		Compressor (includes Items 43 44, 45, 46, 47, 56, 57 & 59) (also Order 876765 Tube Kit   (Replaces: 4317961)				$ 379.03
29	2149120		Support, Heater		Appelez-nous	-
30	1127942		Unit Mounting Frame		Appelez-nous	-
32	2162062		Fan, Motor Bracket		Appelez-nous	-
33	2162019		Heater, Defrost		Appelez-nous	-
35	WP4387503		Bi-metal, Defrost   (Replaces: 2149643)			Immediately	$ 43.10
37	876811		Screw   (Replaces: 489373)				$ 6.68
38	WP2172890		Wire Asm   (Replaces: 1127675)				$ 7.29
39	876811		Grommet   (Replaces: 1100826)				$ 6.68
40	489340		Screw		Appelez-nous	-
41	1127938		Air, Baffle		Appelez-nous	-
42	W11693756		Screw   (Replaces: 488687)			Immediately	$ 12.65
43	WP2262181		Relay   (Replaces: 1108143)				$ 110.39
44	1108114		Overload		Appelez-nous	-
45	1108115		Cover		Appelez-nous	-
46	938384		Strap		Appelez-nous	-
47	WPW10662129		Capacitor   (Replaces: 1118581)			Immediately	$ 52.97
48	2149717		Unit Mounting Rail		Appelez-nous	-
49	WP489464		Screw   (Replaces: 489337)			Immediately	$ 7.05
50	1105612		Guard, Fan				$ 36.52
51	2154119		Drain Extension		Appelez-nous	-
53	488454		Screw,		Appelez-nous	-
54	2159708		Support-evaporator (l.s.)		Appelez-nous	-
54	1118805		Support, Evaporator (r.s.)		Appelez-nous	-
55	W11693756		Screw   (Replaces: 488687)			Immediately	$ 12.65
56	876764		Valve, Access(3/16``)			Immediately	$ 82.22
56	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 19.48
56	978028		Valve, Access (1/2)		Appelez-nous	-
56	978029		Valve Access (5/8``)				$ 93.85
56	978030		Valve, Access (3/4``)				$ 117.64
56	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 94.73
56	W11693756		Screw   (Replaces: 487240)			Immediately	$ 12.65
56	978026		Valve, Access (5/16``)			Immediately	$ 115.28

    View Diagram in Separate Window       Print Part List
