SELECT A DIAGRAM

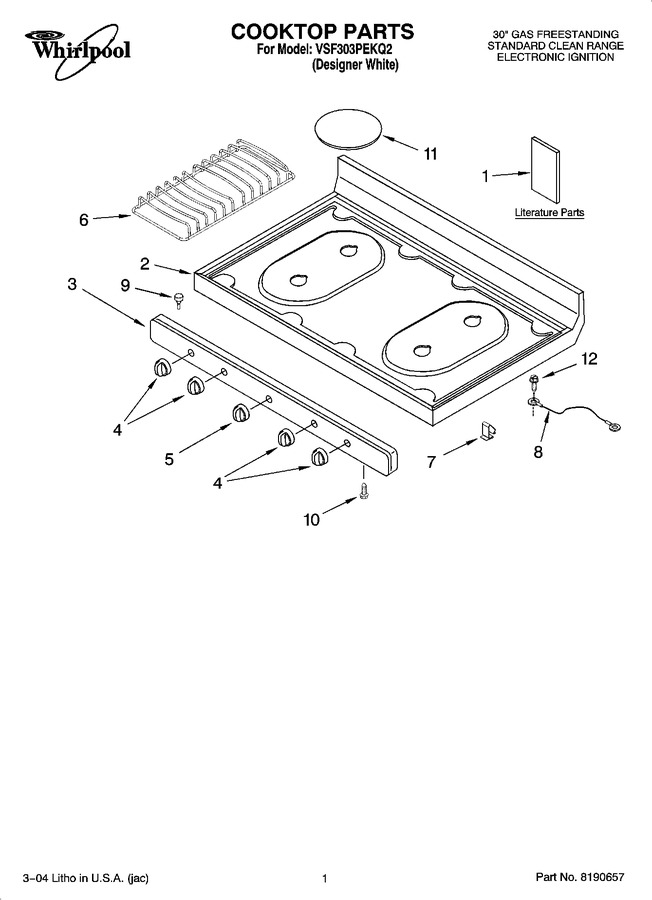

01 - Cooktop Parts


02 - Backguard Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Oven & Broiler Parts


06 - Door Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT98015194		Literature Parts (instructions Installation)		Appelez-nous	-
1	LIT98015589		Literature Parts (installation Instr (template))		Appelez-nous	-
1	LIT98015197		Literature Parts (guide, Use & Care)		Appelez-nous	-
1	LIT98007130		Literature Parts (safer Cooking Tips)		Appelez-nous	-
1	LIT98007032		Literature Parts (tech Sheet)		Appelez-nous	-
1	123		Test		Appelez-nous	-
2	98009677		Cooktop		Appelez-nous	-
3	98009455		Panel, Manifold		Appelez-nous	-
4	WP98006102		Knob, Burner (4)   (Replaces: 98006102)				$ 17.53
5	WP98008321		Knob, Thermostat   (Replaces: 98008321)				$ 18.06
6	8190014		Grate, Burner (2)   (Replaces: 98013747)		Appelez-nous	-
7	W11229684		Clip, Cooktop (2)   (Replaces: 98004722)				$ 10.67
8	3184020		Wire, Ground   (Replaces: 98007209)				$ 74.50
9	W10831827		Bumper, Cooktop   (Replaces: 98013389)		Appelez-nous	-
10	W11233072		Screw (3)   (Replaces: 98005000)			Immediately	$ 12.62
11	WP98005518		Cap, Burner   (Replaces: 98007065)				$ 59.21
12	WP98007225		Screw   (Replaces: 98007225)				$ 6.26

    View Diagram in Separate Window       Print Part List
