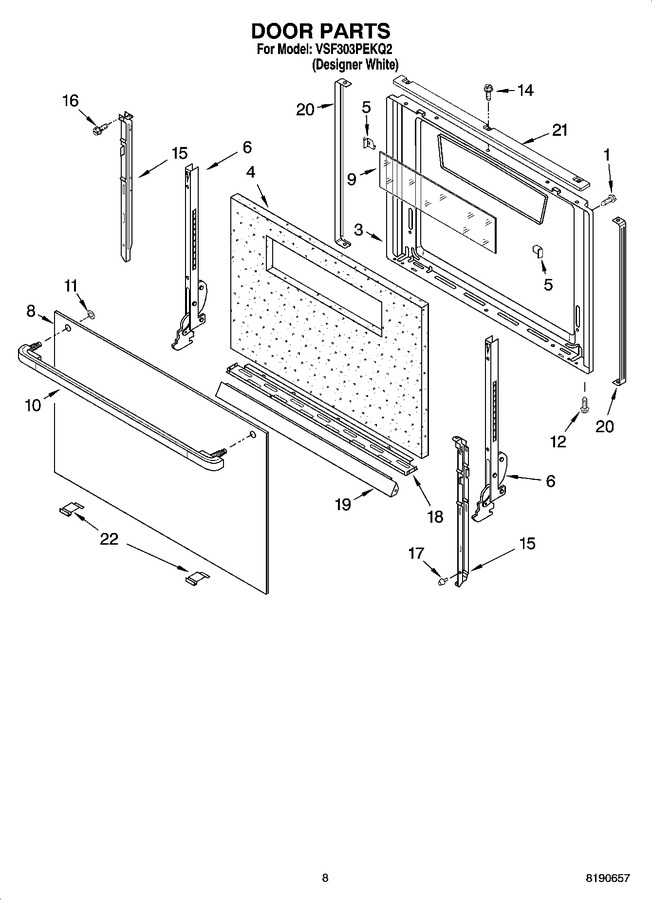

01 - Cooktop Parts
02 - Backguard Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Oven & Broiler Parts
06 - Door Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8533843 | Screw |
|
$ 36.27 | |||||
| 3 | 98010182 | Liner, Door |
|
- | |||||
| 4 | 98006753 | Insulation, Door |
|
- | |||||
| 5 | 98004953 | Clip, Glass (right) |
|
- | |||||
| 5 | 98004952 | Clip, Glass (left) |
|
- | |||||
| 6 | 98004734 | Hinge, Door (2) |
|
- | |||||
| 8 | 98005357 | Panel, Door |
|
- | |||||
| 9 | 98004042 | Glass, Inner |
|
- | |||||
| 10 | WP98005318 | Handle, Oven Door (Replaces: 98005318) |
|
$ 176.14 | |||||
| 11 | WP98004650 | Nut, Push (Replaces: 98004650) |
|
$ 6.26 | |||||
| 12 | WP59002061 | Screw (Replaces: 98004993) |
|
$ 6.98 | |||||
| 14 | 3196166 | Screw (Replaces: 98006727) |
|
$ 6.31 | |||||
| 15 | 98004629 | Retainer (left) |
|
- | |||||
| 15 | 98004564 | Retainer (right) |
|
- | |||||
| 16 | WP3400805 | Screw (Replaces: 98004219) |
|
$ 6.47 | |||||
| 17 | 98004227 | Bumper |
|
$ 18.94 | |||||
| 18 | 98004938 | Insulation, Retainer-top |
|
- | |||||
| 19 | 98012904 | Insulation, Retainer-bottom |
|
- | |||||
| 20 | 98006794 | Side Trim, Door (2) |
|
- | |||||
| 21 | 98006885 | Top Trim, Door |
|
- | |||||
| 22 | 98010185 | Lower Trim, Door |
|
$ 41.41 | |||||
| 814381 | Pin Kit-dr Removal |
|
$ 7.73 | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 44.36 | ||||||
| 98005561 | Harness, Switch |
|
- | ||||||
| 6610371 | Harness, Main |
|
- | ||||||
| 98005896 | Clip, Wire |
|
- | ||||||
| 549193 | Clamp, Cord (Replaces: 98005894) |
|
$ 12.05 | ||||||
| 98005915 | Clip, Wire |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | |||||
| 285006 | Paint, Pressurized Spray 12 Oz.) (superior Black) |
|
Immediately | $ 51.34 | |||||
| 350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) (Replaces: 206922) |
|
$ 80.69 | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | ||||||
| 978883 | Paint, Bulk (1 Qt.) (almond (uncut)) |
|
- | ||||||
| 98007059 | Anti-tip Kit |
|
- | ||||||
| N/A | Miscellaneous |
|
- | ||||||
| 350956 | Paint, Pressurized Spray (12 Oz.) (almond) |
|
$ 46.30 | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 242821 | Wire (14 Ga. 150 C Blue) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 799832 | Kit. Porcelain Repair (white) |
|
- | ||||||
| 8212471 | Touch-up Self-clean(1/2 Pt) (Replaces: 242756) |
|
Immediately | $ 74.76 | |||||
| 261582 | Grease |
|
- | ||||||
| WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 49.92 | |||||
| WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 49.92 |
