View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cabinet Parts
03 - Door Parts
04 - Liner Parts
05 - Unit Parts
06 - Shelf Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

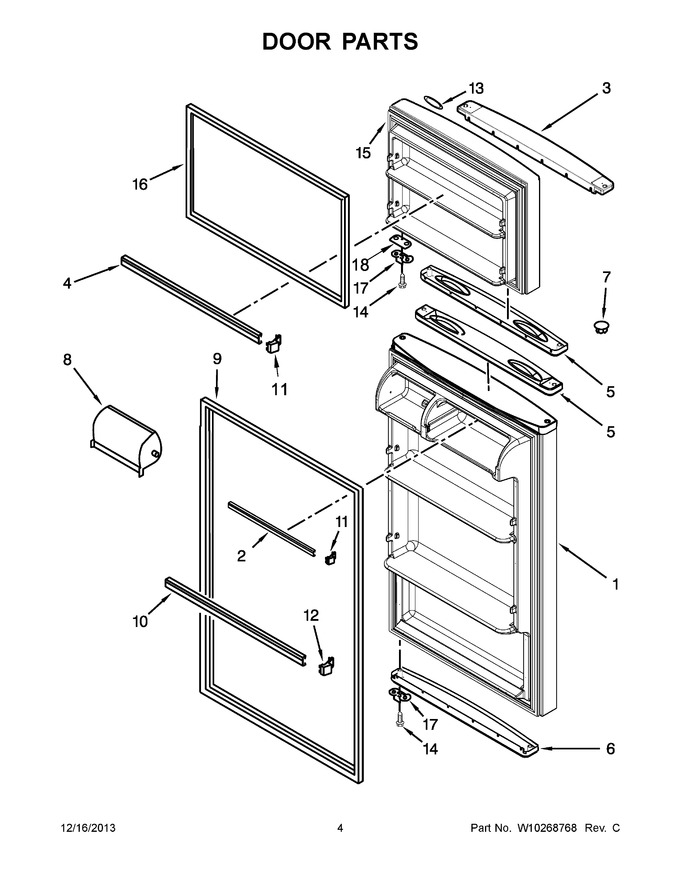

| 1 | 2316031B | Door, Refrigerator (includes Items 5, 6 And 9) (black) |
|
- | |||||
| 1 | W10251797 | Door, Refrigerator (includes Items 5, 6 And 9) (stainless) |
|
- | |||||
| 1 | 2316366W | Door, Refrigerator (includes Items 5, 6 And 9) (white) |
|
- | |||||
| 2 | W11129820 | Trim, Door (Replaces: W10234242) |
|
Immediately | $ 109.15 | ||||
| 3 | W10381158 | Endcap, Top (white) |
|
- | |||||
| 3 | 2252863 | Endcap, Top (black) |
|
Immediately | $ 133.31 | ||||
| 4 | WP2266727 | Trim, Door (Replaces: 2266727) |
|
Immediately | $ 83.25 | ||||
| 5 | 2222045 | Endcap, Handle (black) |
|
$ 41.70 | |||||
| 5 | 2265645W | Endcap, Handle (white) |
|
$ 188.55 | |||||
| 6 | 2222048 | Endcap, Bottom (black) |
|
- | |||||
| 6 | W10381159 | Endcap, Bottom (white) |
|
- | |||||
| 7 | WP2212651 | Plug, Hole (black) (Replaces: 2212651) |
|
$ 20.75 | |||||
| 7 | WP2212648 | Plug, Hole (white) (Replaces: 2212648) |
|
$ 7.02 | |||||
| 8 | WP2207942 | Door, Compartment (Replaces: 2207942) |
|
Immediately | $ 52.88 | ||||
| 9 | 2319266B | Gasket, Door (black) (Replaces: 2264725) |
|
$ 322.72 | |||||
| 9 | WP2319266T | Gasket, Door (beige) (Replaces: W10190034) |
|
$ 154.44 | |||||
| 10 | WP2266738 | Trim, Door (Replaces: 2266738) |
|
$ 100.52 | |||||
| 11 | WP2156003 | Cap, Door Trim End (Replaces: 2156003) |
|
Immediately | $ 11.36 | ||||
| 12 | WP2195916K | Cap, Door Trim End (Replaces: 2195916) |
|
Immediately | $ 11.30 | ||||
| 13 | W11178521 | Badge (white) (Replaces: W10481434) |
|
Immediately | $ 56.82 | ||||
| 14 | W10276642 | Screw (Replaces: 8533904) |
|
$ 5.49 | |||||
| 15 | W10209802 | Door, Freezer (includes Items 3, 5 And 16) (stainless) |
|
- | |||||
| 15 | 2263251W | Door, Freezer (includes Items 3, 5 And 16) (white) |
|
- | |||||
| 15 | 2265678B | Door, Freezer (includes Items 3, 5 And 16) (black) |
|
- | |||||
| 16 | WP2319263B | Gasket, Door (black) (Replaces: 2264722) |
|
Immediately | $ 229.95 | ||||
| 16 | WP2319263T | Gasket, Door (beige) (Replaces: W10190031) |
|
Immediately | $ 152.58 | ||||
| 17 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 18 | 2258681B | Shim, Door Stop (black) |
|
$ 38.85 | |||||
| 18 | WP2258681W | Shim, Door Stop (white) (Replaces: 2258681W) |
|
Immediately | $ 6.47 |
