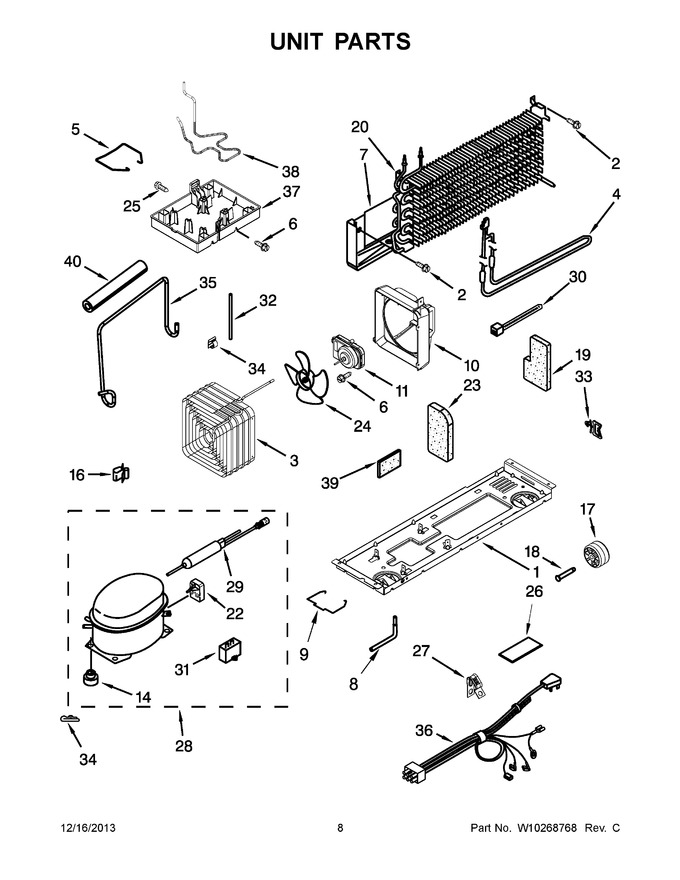

05 - Unit Parts
06 - Shelf Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10222450 | Plate, Compressor Support (Replaces: W10222450) |
|
$ 125.81 | |||||
| 2 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 9.85 | ||||
| 3 | WP2264004 | Condenser (Replaces: 2264004) |
|
$ 178.25 | |||||
| 4 | WP2263749 | Heater, Defrost (Replaces: 2176942) |
|
Immediately | $ 84.33 | ||||
| 5 | 2264835 | Clip, Condenser |
|
- | |||||
| 6 | WPW10171469 | Screw (Replaces: 8533859) |
|
Immediately | $ 9.95 | ||||
| 7 | 2319224 | Shield, Heat |
|
$ 116.21 | |||||
| 8 | W11676464 | Tube, Process (Replaces: VS20001) |
|
$ 93.10 | |||||
| 9 | 2212996 | Strap Bale |
|
$ 10.90 | |||||
| 10 | W10358308 | Fan, Scroll |
|
$ 129.64 | |||||
| 11 | W11578915 | Motor, Condenser (Replaces: 2188875) |
|
Immediately | $ 64.28 | ||||
| 14 | WPW10169124 | Grommet (Replaces: 2264447) |
|
Immediately | $ 6.47 | ||||
| 16 | W10812038 | Clip, Wire (compressor) (Replaces: 939054) |
|
- | |||||
| 17 | WPW10475495 | Roller (Replaces: W10475495) |
|
Immediately | $ 28.85 | ||||
| 18 | WP2264756 | Axle, Roller (Replaces: 2264756) |
|
$ 6.47 | |||||
| 19 | 2262191 | Wedge, Evaporator |
|
- | |||||
| 20 | WP2263920 | Evaporator (Replaces: 2263920) |
|
Immediately | $ 285.62 | ||||
| 22 | W10330831 | Device, Start (combination Relay And Overload) |
|
- | |||||
| 23 | 2262192 | Wedge, Evaporator |
|
- | |||||
| 24 | 2264129 | Blade, Fan |
|
Immediately | $ 94.28 | ||||
| 25 | WP489489 | Screw (Replaces: 2264841) |
|
$ 5.82 | |||||
| 26 | 2266360 | Shield,electrical |
|
- | |||||
| 27 | 549193 | Clamp, Power Cord |
|
$ 12.05 | |||||
| 28 | 2217634 | Compressor (also Order 482801 Installation Kit 876765 Tube Kit) |
|
- | |||||
| 29 | W10843121 | Drier (Replaces: W10190413) |
|
Immediately | $ 47.31 | ||||
| 30 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 7.11 | |||||
| 31 | WPW10662129 | Capacitor (Replaces: 2264017) |
|
Immediately | $ 52.97 | ||||
| 32 | 2264278 | Tube, Drain |
|
$ 68.37 | |||||
| 33 | 2266467 | Clip, Harness |
|
- | |||||
| 34 | 24364001 | Pin, Cotter |
|
- | |||||
| 35 | 2264131 | Extension, Heat Tube |
|
$ 14.46 | |||||
| 36 | WPW10151677 | Assembly, Unit Wire (Replaces: W10151677) |
|
$ 117.35 | |||||
| 37 | WP2263928 | Tray, Evaporator (Replaces: 2263928) |
|
$ 127.73 | |||||
| 38 | 2316181 | Tube, Discharge |
|
$ 58.16 | |||||
| 39 | W11553819 | Insulation, Sound (Replaces: 2215468) |
|
Immediately | $ 12.66 | ||||
| 40 | 2264838 | Sleeve |
|
$ 79.10 | |||||
| NI | 978030 | Valve, Access Ÿ``) |
|
$ 117.64 | |||||
| NI | 876764 | Valve, Access |
|
Immediately | $ 82.22 | ||||
| NI | N/P | Refrigerant Charge 3.75 Oz. (r-134) |
|
- | |||||
| NI | WP978025 | Valve, Access (Œ``) (Replaces: 978025) |
|
Immediately | $ 94.73 | ||||
| NI | 978026 | Valve, Access |
|
Immediately | $ 115.28 | ||||
| NI | SF5538 | Valve, Access (Replaces: 978027) |
|
$ 19.48 | |||||
| NI | 978028 | Valve, Access |
|
- | |||||
| NI | 978029 | Valve, Access |
|
$ 93.85 |
