01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

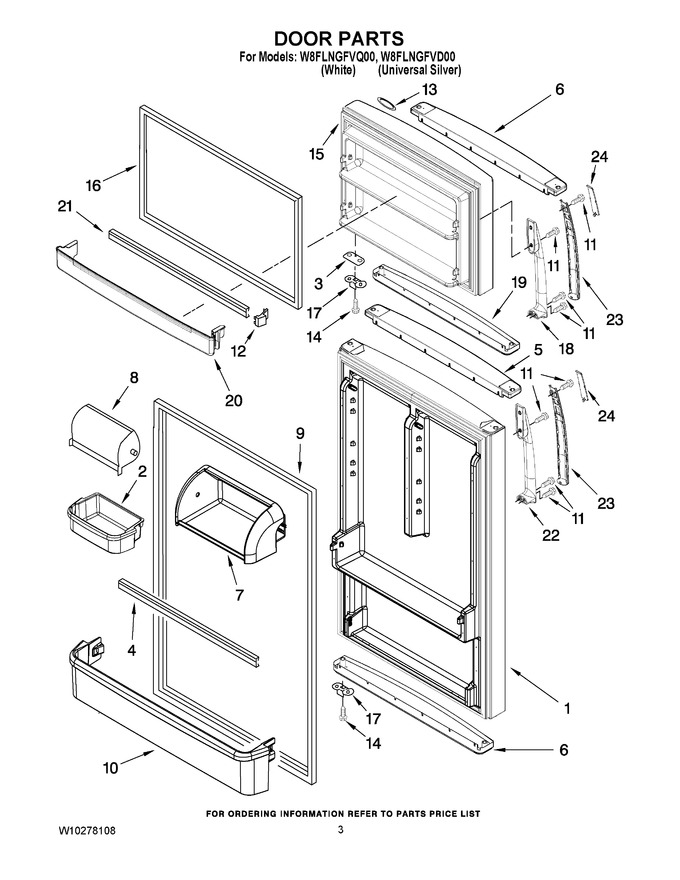

| 1 | W10258298 | Refrigerator Door (includes Illus. 5,6 & 9) (white) |
|
- | |||||
| 1 | W10258362 | Refrigerator Door (includes Illus. 5,6 & 9) (universal Silver) |
|
- | |||||
| 2 | 2328524 | Bin, Door (3) |
|
$ 31.63 | |||||
| 3 | WP2258681W | Shim, Door Stop (Replaces: 2258681W) |
|
Immediately | $ 6.47 | ||||
| 4 | WPW10234241 | Trim, Door Shelf (Replaces: W10234241) |
|
Immediately | $ 104.87 | ||||
| 5 | W10246489 | Endcap, Top Rc (white) |
|
- | |||||
| 5 | W10247422 | Endcap, Top Rc (apollo Grey) |
|
- | |||||
| 6 | W10251092 | Endcap (white) |
|
- | |||||
| 6 | W10251094 | Endcap (apollo Grey) |
|
- | |||||
| 7 | 2264477 | Housing, Compartment (Replaces: 2266057) |
|
$ 83.18 | |||||
| 8 | 2328521 | Door, Compartment |
|
- | |||||
| 9 | WP2319264W | Door Gasket, Magnetic (Replaces: 2264727) |
|
Immediately | $ 282.07 | ||||
| 10 | WPW10468559 | Trim, Door Shelf (botton) (Replaces: 2328523) |
|
$ 93.74 | |||||
| 11 | WP489491 | Screw (Replaces: W10002730) |
|
$ 6.26 | |||||
| 12 | WP2156003 | Endcap, Trim (Replaces: 2156003) |
|
Immediately | $ 11.36 | ||||
| 13 | WP2213265 | Nameplate (Replaces: 2255121) |
|
Immediately | $ 79.87 | ||||
| 14 | W10276642 | Screw (Replaces: 8533904) |
|
$ 5.49 | |||||
| 15 | W10258303 | Freezer Door (includes Illus. 6,16 & 19) (universal Silver) |
|
$ 423.91 | |||||
| 15 | W10258299 | Freezer Door (includes Illus. 6,16 & 19) (white) |
|
- | |||||
| 16 | WP2319263W | Door Gasket, Magnetic (Replaces: 2264726) |
|
Immediately | $ 135.93 | ||||
| 17 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 18 | 2319301D | Handle, Fc (silver) |
|
- | |||||
| 18 | 2319301W | Handle-fc (white) |
|
- | |||||
| 19 | W10246488 | Endcap, Bottom Fc (white) |
|
- | |||||
| 19 | W10247424 | Endcap, Bottom Fc (apollo Grey) |
|
- | |||||
| 20 | 2328522 | Trim, Fc Door |
|
- | |||||
| 21 | 2324266 | Trim, Door Shelf |
|
- | |||||
| 22 | 2319300W | Handle, Rc (white) |
|
$ 36.73 | |||||
| 22 | 2319300D | Handle, Rc (silver) |
|
- | |||||
| 23 | 2319302D | Cap-handle Rc & Fc (silver) |
|
- | |||||
| 23 | 2319302W | Cap-handle Rc & Fc (white) |
|
- | |||||
| 24 | 2319303C | Insert-cap-handle |
|
- |
