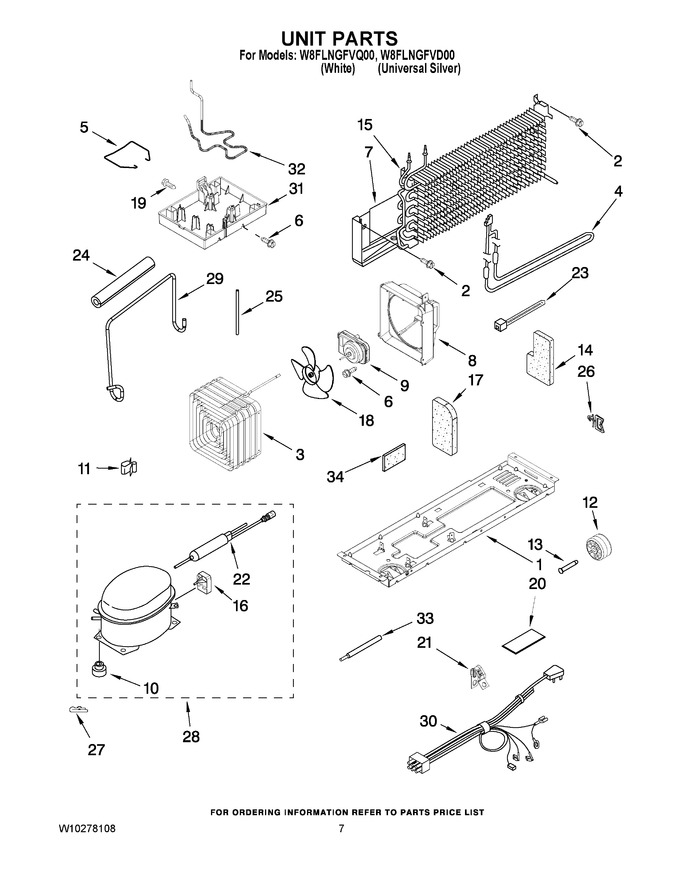

04 - Unit Parts


05 - Shelf Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10222450		Support Plate, Compressor   (Replaces: W10222450)				$ 125.81
2	WP489442		Screw   (Replaces: 489442)			Immediately	$ 9.85
3	W10140200		Condenser		Appelez-nous	-
4	WP2263749		Heater, Defrost   (Replaces: 2176942)			Immediately	$ 84.33
5	2264835		Clip, Condensor		Appelez-nous	-
6	WPW10171469		Screw   (Replaces: 8533859)			Immediately	$ 9.95
7	2319224		Heat Shield				$ 116.21
8	WP2263929		Air Baffle   (Replaces: 2263929)				$ 81.11
9	W11578915		Motor, Condensor   (Replaces: 2188875)			Immediately	$ 64.28
10	WP2163786		Grommet (service)   (Replaces: 2222084)				$ 7.16
11	W10812038		Clip, Wire   (Replaces: 939054)		Appelez-nous	-
12	WPW10475495		Roller   (Replaces: 2150304)			Immediately	$ 28.85
13	WP2264756		Axle, Rivet   (Replaces: 2264756)				$ 6.47
14	2262191		Wedge-evaporator		Appelez-nous	-
15	WP2263920		Evaporator Assy.   (Replaces: 2263920)			Immediately	$ 285.62
16	2320151		Start-device, Combination (start Relay And Overload For Production Compressor Only) (service)				$ 163.00
16	WP2320150		Start Device, Combination (start Relay And Overload For Production Compressor Only) (production)   (Replaces: 2320150)			Immediately	$ 80.51
17	2262192		Wedge-evaporator		Appelez-nous	-
18	2264129		Fan Blade			Immediately	$ 94.28
19	WP489489		Screw   (Replaces: 2264841)				$ 5.82
20	2266360		Shield,electrical		Appelez-nous	-
21	549193		Clamp-cord				$ 12.05
22	W10843121		Drier (production)   (Replaces: W10190413)			Immediately	$ 47.31
22	WPW10143759		Drier (service)   (Replaces: 2317845)			Immediately	$ 27.70
23	WPW10339879		Strap   (Replaces: 2263990)				$ 7.11
24	2264838		Sleeve				$ 79.10
25	2264278		Tube, Drain				$ 68.37
26	2266467		Clip, Harness		Appelez-nous	-
27	24364001		Clip, Compressor		Appelez-nous	-
28	W10309988		Compressor Includes 11, 16, & 22) Also Order 482801 Installation Kit & 876765 Tube Kit)   (Replaces: 2320132)			Immediately	$ 503.39
29	W10209727		Extension Tube-heat				$ 99.38
30	WPW10151677		Wire Assy. Unit   (Replaces: W10151677)				$ 117.35
31	WP2263928		Evaporator Tray   (Replaces: 2263928)				$ 127.73
32	W10209728		Tube, Discharge (incl. Pre Cooler)				$ 106.23
33	W11661102		Tube, Process   (Replaces: 2174739)				$ 26.11
34	W11553819		Insulation, Sound   (Replaces: 2215468)			Immediately	$ 12.66
NI	978029		Valve Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 117.64
NI	876764		Valve, Access(3/16``)			Immediately	$ 82.22
NI	N/P		Refrigerant Charge (3.75 Ozs. R134a))		Appelez-nous	-
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 94.73
NI	978026		Valve, Access (5/16``)			Immediately	$ 115.28
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 19.48
NI	978028		Valve, Access (1/2)		Appelez-nous	-
