SELECT A DIAGRAM
02 - Control Panel
03 - Gas Control
04 - Door Parts
05 - Broiler Drawer Parts
06 - Body Parts
SELECT A DIAGRAM
New Model Search:

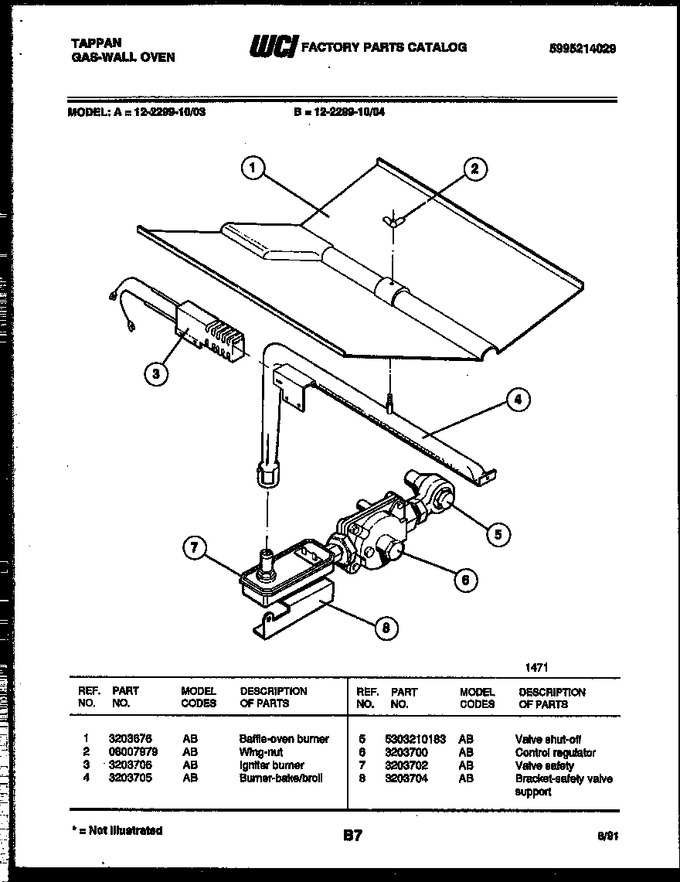

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3203676 | Baffle,oven Burner |
|
- | |||||
| 2 | 08007979 | Wing Nut |
|
- | |||||
| 3 | 3203706 | Igniter Burner |
|
- | |||||
| 4 | 3203705 | Burner-bake/broil |
|
- | |||||
| 5 | 5303210183 | Valve Shut Off |
|
- | |||||
| 6 | 3203700 | Control Regulator |
|
- | |||||
| 7 | 3203702 | Valve-safety |
|
- | |||||
| 8 | 3203704 | Bracket-safety Valve Support |
|
- |
